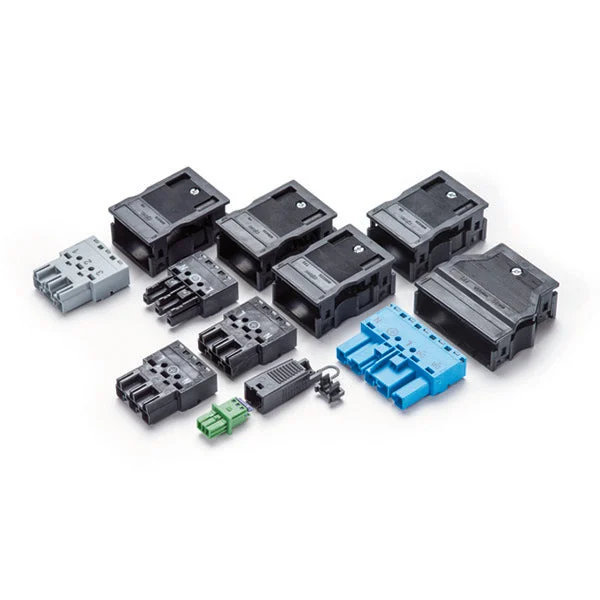

The Esylux connector is designed for plug-in building installation, with dimensions of 55x17x76mm. The unit has a male plug configuration, with gray coding and contact inserts. It features a spring clamp connection method, with a connection cross-section (solid) of 0.75 – 2.5mm² and a cross-section connection (flexible) of 0.75 – 2.5mm². Perfectly designed for technical experts, this device includes pole marking 1. 2. 3, and a 5-pole set up. Additionally, it comes with a plug set compatible for the KNX-multicontroller WAGO. The set includes six plugs for connecting to KNX, DALI, HVAC, Relay1, Relay2, and power supply.
Specifications
Rated voltage (V) : 230
Number of poles : 5
Degree of protection (IP) : IP20
Connection type : Spring clamp connection
Model : Plug
Cable diameter (mm) : 8.5 mm to 13.8 mm
Number of connections per pole : 2
Pole codification : 1, 2, 3
Mechanical coding : Yes
Color coding/contact insert : Grey
Locking mechanism : Integrated in plug-in connector
With strain relief : Yes
Max. continuous temperature resistance contact part (°C) : 40
Max. continuous temperature resistance strain relief (°C) : 40
Material : Other
Halogen free : No
Contact material : CuSn
Surface treatment contacts : Tinned
Pollution degree : 3
Continuity resistor (mOhm) : 100
Rated surge voltage (kV) : 4
Length (mm) : 76
Height (mm) : 17
Width (mm) : 55
