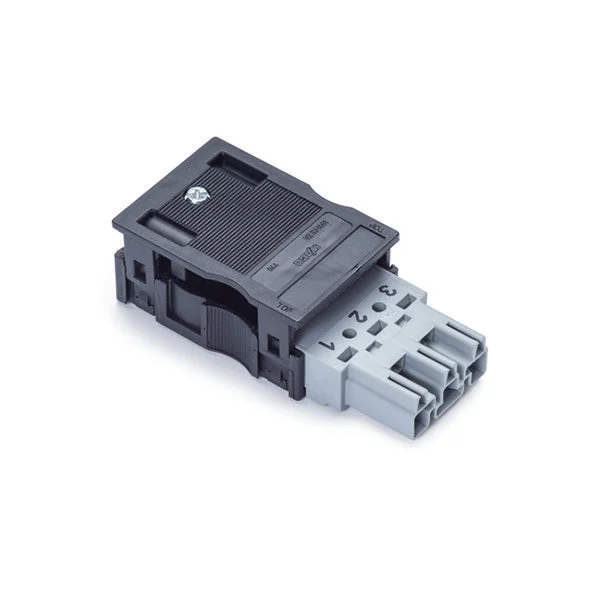

This is an Esylux connector for building installations, with dimensions of 35x18x76mm. It features a male plug design, and has a gray coding/contact insert. It also comes with pole marking 1. 2. 3. The connection method is a spring clamp connection. The cross-section of the connection for solid wires ranges from 0.75 to 2.5mm², while the cross-section for flexible wires is also 0.75 to 2.5mm². It’s a three-pole connector. In addition, there’s an accessory electric plug for thermo-electric valve control 23″.
Specifications
Rated voltage (V) : 230
Number of poles : 3
Degree of protection (IP) : IP20
Connection type : Spring clamp connection
Model : Plug
Cable diameter (mm) : 8.5 mm to 13.8 mm
Number of connections per pole : 2
Pole codification : 1, 2, 3
Mechanical coding : Yes
Color coding/contact insert : Grey
Locking mechanism : Integrated in plug-in connector
With strain relief : Yes
Max. continuous temperature resistance contact part (°C) : 40
Max. continuous temperature resistance strain relief (°C) : 40
Material : Other
Halogen free : No
Contact material : CuSn
Surface treatment contacts : Tinned
Pollution degree : 3
Continuity resistor (mOhm) : 100
Rated surge voltage (kV) : 4
Length (mm) : 76
Height (mm) : 18
Width (mm) : 35
