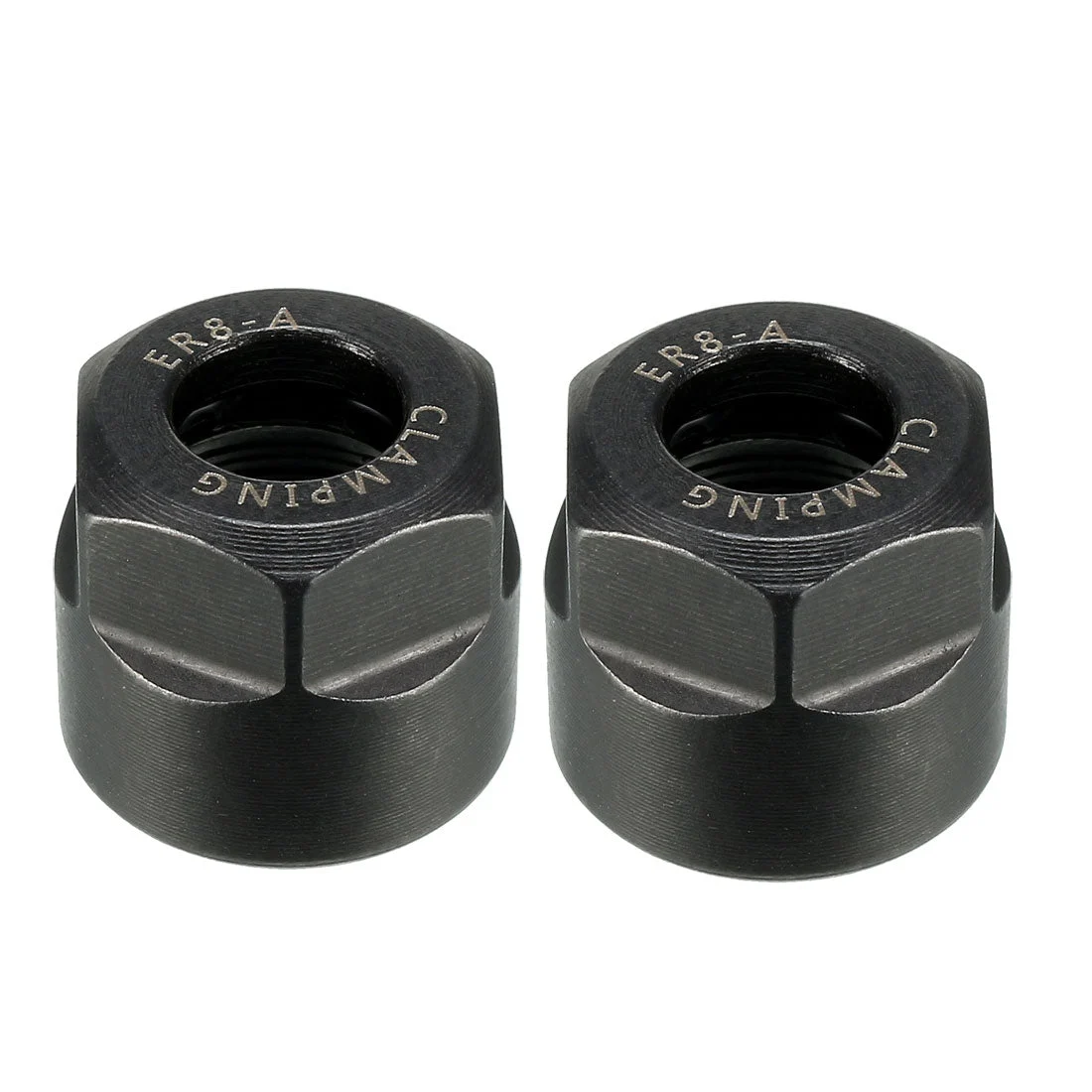

ER8 A Type Collet Clamping Hex Nuts for CNC Milling Chuck Holder Lathe 2 Pcs

About this item

• Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
• Model : ER8 A Type ; Material : Cast Steel
• Hole Diameter : 6mm / 0.24″ ; Overall Size(Approx.) : 13 x 12mm/ 0.51″ x 0.47″ (D*H)
• This collet nut is a great replacement for the broken part; Fit most tool holders
• Package Content: 2 x Collet Nut

Description:

Precision ground and hardened.

This collet nut is a great replacement for the broken part.

Fit most tool holders.



Specification:

Product Name : Collet Nut

Model : ER8-A

Overall Size:13 x 12mm/ 0.51″ x 0.47″ (D*H)

Thread Size: M10

Thread Pitch: 0.75mm / 0.02″

Hex Width: 12mm / 0.47″

Hole Diameter: 6mm / 0.24″

Material : Cast Steel

Package Content: 2 x Collet Hex Nut
