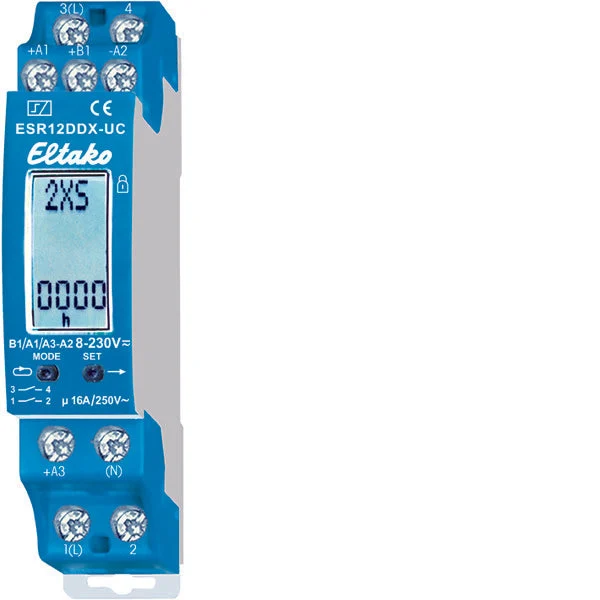

This digitally adjustable impulse relay from Eltako’s ES12 series features two potential-free make contacts (NO) and is suitable for incandescent lamps up to 2000W. In addition, the impulse relay has as many as 18 different functions. By using bi-stable relays, there are no coil losses when energized and therefore no heat generation. Also, the relay can be controlled with a multi-voltage of 8-230V. Furthermore, this impulse relay has no standby loss, a current rating of 16A and very low switching noise.
Specifications
Function : Electronic with release delay
Mounting method : DIN rail
Width in number of modular spacings : 1
Built-in depth (mm) : 58
Number of contacts as normally open contact : 2
Number of contacts as normally closed contact : 0
Number of contacts as change-over contact : 0
Control voltage 1 (V) : 12 V to 230 V
Type of control voltage 1 : AC
Frequency control voltage 1 (Hz) : 50 Hz to 50 Hz
Control voltage 2 (V) : 10 V to 230 V
Type of control voltage 2 : DC
Frequency control voltage 2 (Hz) : 50 Hz to 50 Hz
Rated switch current (A) : 16
Supply voltage (V) : 230 V to 230 V
Voltage type of supply voltage : AC/DC
Max. incandescent lamp load (W) : 2000
Max. load fluorescent lamp (VA) : 1000
Max. load fluorescent lamp (Duo circuit) (VA) : 1000
Max. load fluorescent lamp (parallel compensated) (VA) : 500
Max. switching current (cos phi = 0.6) (A) : 8
Manual override : No
