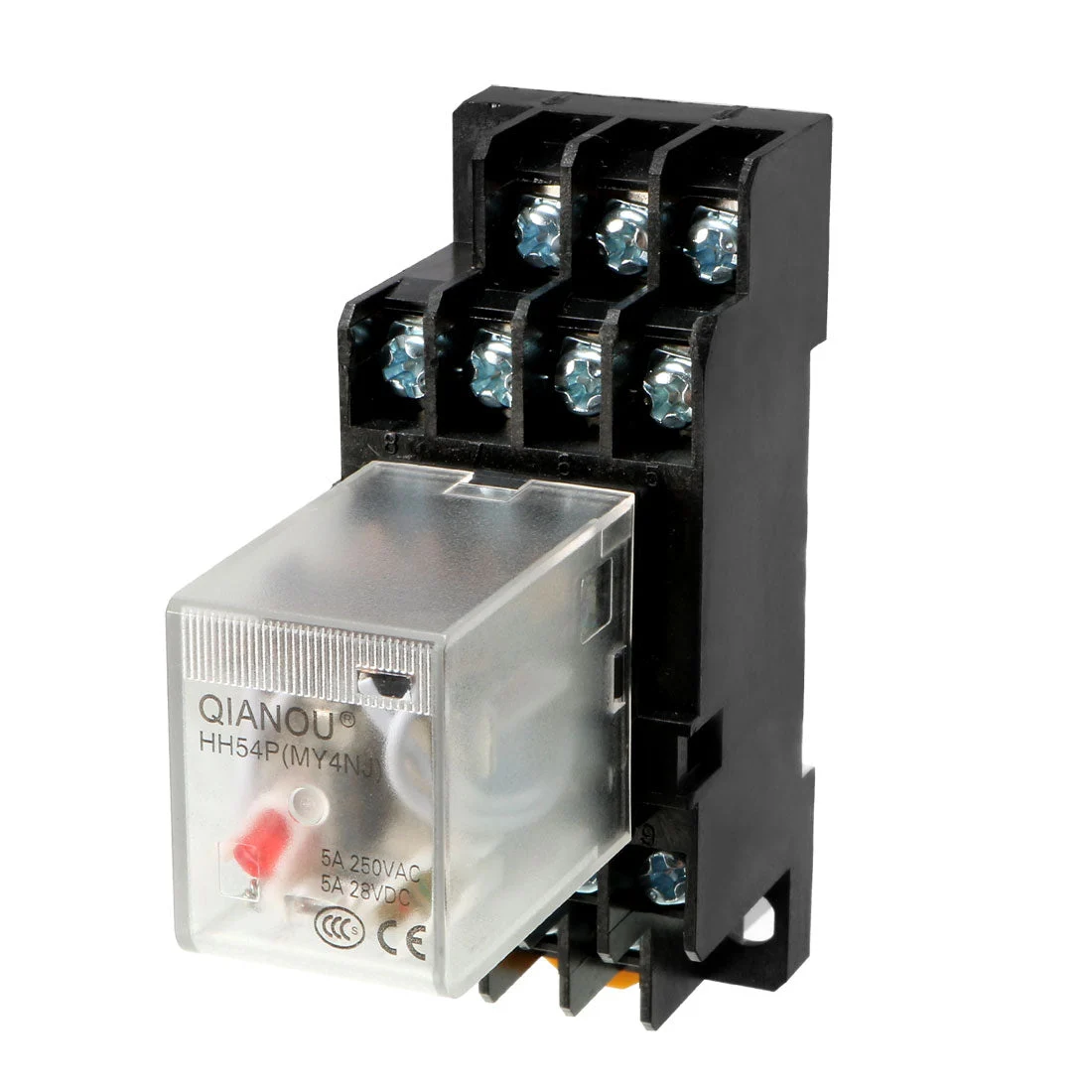

Electromagnetic Power Relay, AC24V Coil Red Indicator Light 14 Pin 4P4T Electromagnetic General Purpose Power Relay + Socket Base

About this item

• Product Name:Electromagnetic Power Relay ; Model:HH54P Type : 4P4T;Number of Terminals : 14
• 1.Alloy contact, good electrical conductivity, increased contact stability and sensitivity, oxidation resistance, high current carrying capacity, long service life 2. Copper coil, high purity, stable operation, dense and numerous coil copper wires, able to withstand higher voltages 3. Used with a ABS base, stable and durable, high temperature resistant.
• Coil Voltage:AC24V ; Contact Capacity:5A 250VAC/5A 28VDC;
• Mounting Rail Width: 36mm; Installing Hole Size: 6 x 4mm / 0.24 x 0.16inch (L*W); Installing Hole Center Distance: 59 x 22mm / 2.32 x 0.87inch(L*W);
• Used widely in the remote control, communication, automatic control system, electronic equipments, etc.

Descriptions:

• 14pins, 4P4T type.
• Can adjust automatically, protect and transform the electric circuit.
• Used widely in the remote control, communication, automatic control system, electronic equipments, etc.

Specifications:

Product Name:Electromagnetic Power Relay;

Model:HH54P;

Coil Voltage:AC24V ;

Contact Capacity:5A 250VAC/5A 28VDC;

Number of Pins:14;

Mounting Rail Width: 36mm;

Installing Hole Size: 6 x 4mm / 0.24 x 0.16inch (L*W);

Installing Hole Center Distance: 59 x 22mm / 2.32 x 0.87inch(L*W);

Body Size (Approx.):75 x 29 x 66mm/2.95 x 1.14 x 2.6inch(L*W*H);

Color:White,Black

Package Content:1 power Relays
