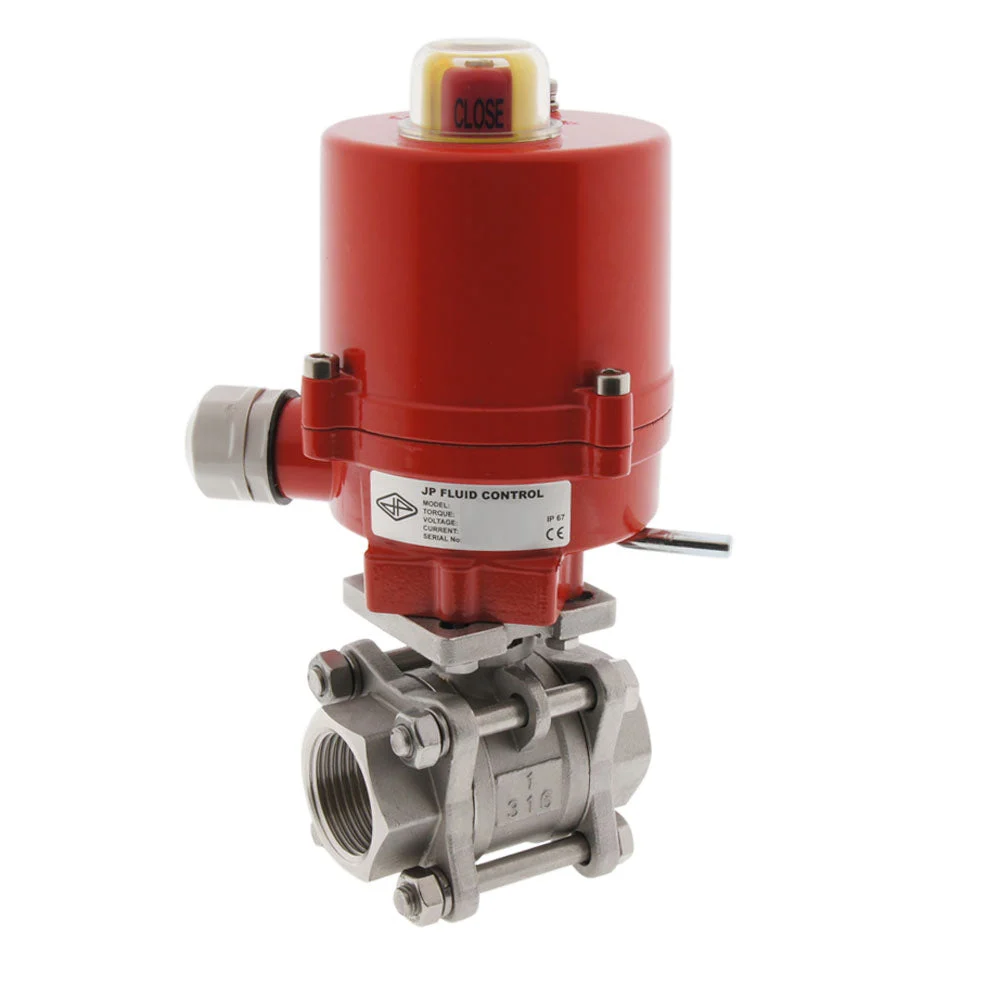

This strong and energy efficient 2-way electrical ball valve from Tameson can be used to automatically shut of pipes with gas or fluids. The valve has 1-1/2 inch pipe threads (internal thread, BSPP). The housing of the valve is made of stainless steel with a stainless steel ball and PTFE (teflon) sealing. The actuator is suitable for both 12 volt DC (direct current) and 12 volt AC 50/60Hz (alternating current). With switches on the circuit board, the actuator can be set for AC or DC. The factory default setting is direct current (DC). The actuator has a robust aluminium housing (IP67, provided that an appropriate cable is connected) and delivers maximally 40 Nm torque. The valve rotates from 0 to 90 degrees in 8 seconds. When the ball reaches an end position, the electric motor is turned off and no energy is consumed. The actuator is equipped with two additional limit switches for position-feedback. The limit switches are positioned at 0 and 90 degrees. If required, the angular position of the switches can be adjusted by the user. A mechanical position indicator on the top of the actuator shows the valve position. The actuator is equipped with a manual override.
Key benefits
- Robust stainless steel ball valve with 1-1/2 inch pipe threads
- Switching time only 8 seconds
- Strong IP67 actuator housing
- Both 12V AC and DC possible (set by switch)
- Two extra limit switches for position feedback
- Manual override control
- Clear visual position indicator
- 3-Piece, full bore ball valve from 316 stainless steel
Technical specifications
| Actuator | Ball Valve | ||
|---|---|---|---|
| Actuator ref: | AG-040-C | Ball Valve ref: | 665S112 |
| Voltage: | 12V DC/AC (50/60Hz) | Housing: | Stainless steel (AISI 316) |
| Nom./Max. Current: | 0.2/2.2 A | Ball: | stainless steel (AISI 316) |
| Protection: | IP67 | Seat rings: | PTFE (teflon) |
| Duty Cycle: | S2 30min. | Pipe threads: | G1-1/2″ BSP |
| Open/Close: | 7 s | Nominal Diameter: | 38mm (DN) |
| Amb. Temp.: | -10°C..50°C | Installation length: | 103 mm |
| Range: | 0-90° | Max pressure (@20°C): | 70 bar |
| Extra limit switches: | 2 | Function: | 2 way |
| Manual override: | Yes | Temp medium: | -30°C..130°C |
Dimensions
DimensionsL1=62mmL2=26mmL3=190mmL4=103mmL5=94mmL6=mm
Specifications
Connection size : 1 1/2 inch
Voltage : 12 V DC
Material : Stainless steel
Seal material : Teflon (PTFE)
Control signal : Three-point (open-close)
Max pressure difference (bar) : 70
Recommended for : Water,Steam,Air,Carbon dioxide,Dilute acids and bases,Strong acids and bases,Oil,Fuel,Solvents,Alcohols,Lubricant,Combustible gases,Sea water,Demineralized water
Operating time (s) : 8
Connection type : Inner thread cylindrical BSPP-G
Ball valve feature : Fast running,Manual override,End position feedback
Kv value [m3/h] : 170
Valve bore (mm) : 38
Max actuator torque (nm) : 40
Max temperature (°C) : 130
Min temperature (°C) : -30
Material quality : Stainless steel 316 (1.4401)
Degree of protection (IP) : IP67
Nominal power (W) : 2.4
Position feedback : Open & close limit switch
Manual override : Yes
Ground characteristic : Equal percentage
Adjustable operating range : Yes
Ambient temperature (°C) : -10 °C to 50 °C
Duty cycle : S2 30min
Material ball seal : Teflon (PTFE)
Max. electric power input (VA) : 26.4
Position reporting signal : None
Surface protection : Untreated
Transmission : With cogwheels
With end contacts : Yes
Voltage : 12 V DC
