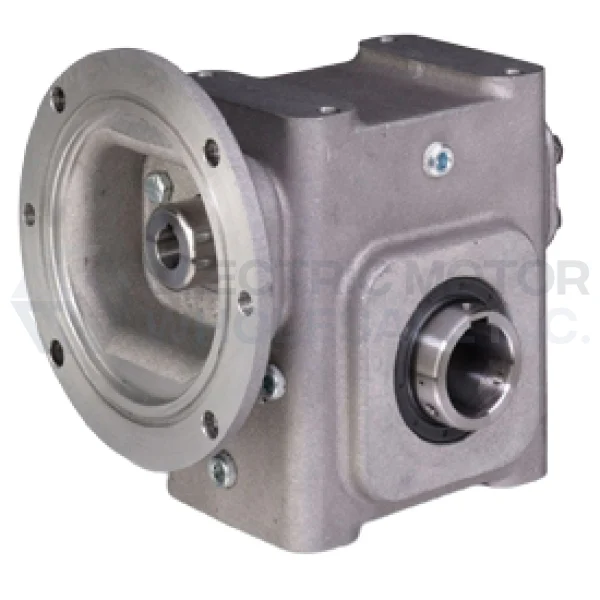

ELECTRA-GEAR HMQ Series Aluminum Gear Reducers are ideal for conveyors, material handling, textile machines, packaging machinery, and other machines that require slow speed with high torque. EL Series Mounting dimensions same as the original Electra-Gear product with an option to match the industry standard dimensions of Grove Gear.
Features:
- Aluminum Housing Construction
- Factory filled with Premium Synthetic Lube as standard
- Lightweight design with all the premium features of the GR and NH series as standard
- O-rings on input and output covers
- Replacement to original Electra Gear reducers
- Cast Aluminum NEMA C-input with machined fits for precision alignment of motors and bearings.
- Polished finish also available.
Specifications
|
Max Input HP @1750: |
1.05 |
|
Output RPM @1750: |
87 |
|
Reduction Ratio: |
20:1 |
|
Torque (lb-in)@1750rpm: |
630 |
|
Overhung Load (lbs.): |
1200 |
|
Shaft Center Distance: |
1.75 |
|
Shaft Center Height: |
2.31 |
|
NEMA Input Mounting: |
56C |
|
Mount Style: |
HMQ |
|
Series Size: |
818 |
