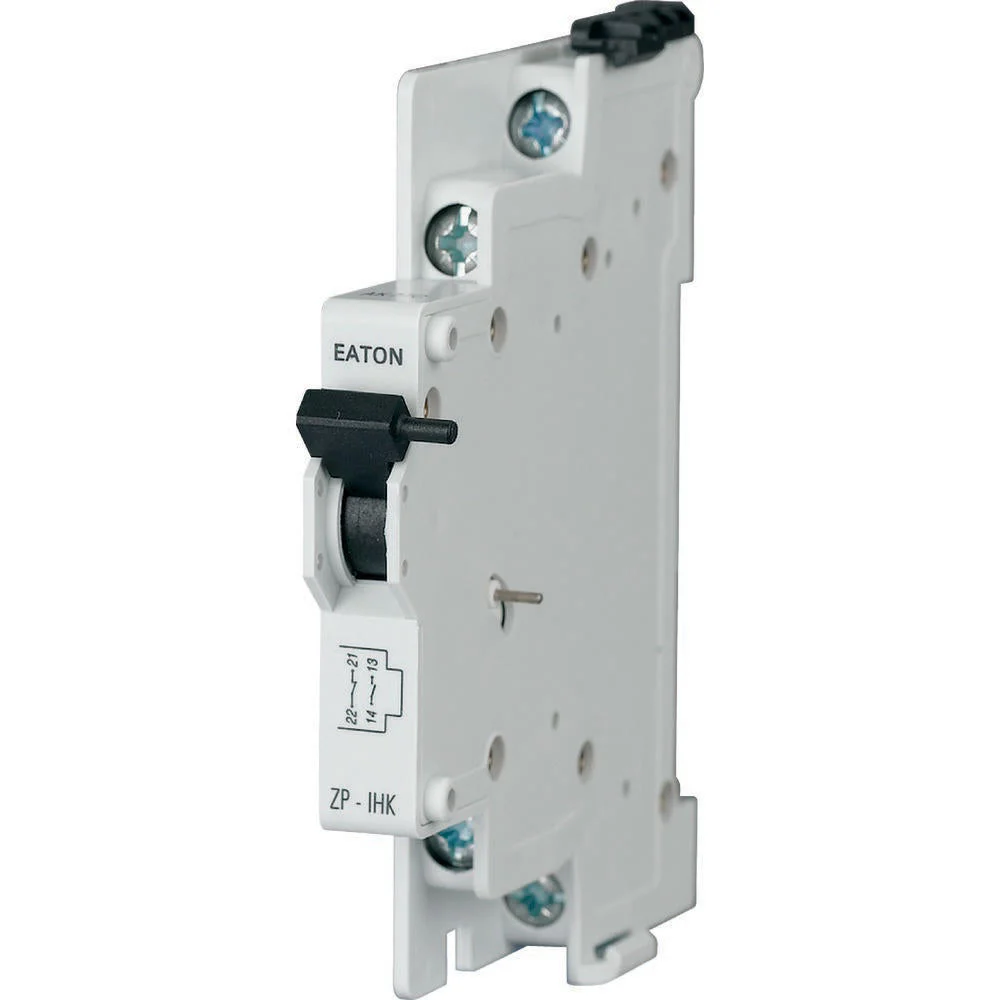

The Eaton Industries Xpole is a universal, modular auxiliary device for device mounting. It measures 0.5 in modular units and features 1 make contact and 1 break contact. It has a nominal switch current of 3A and a nominal voltage of 230V AC. Furthermore, it can accommodate up to 2 poles and is suitable for a maximum current of 6A. The device also includes 0.5 auxiliary contacts suitable for 1N/O+1N/C. Moreover, it can be identified by several codes including PLS, PKNM, ZP-A40, ASA, IHK, WHK, and Z-MS.
Specifications
Device fitting : Universal
Additional equipment : Auxiliary switch
Installed at the factory : No
Width in number of modular spacings : 0.5
Number of contacts as normally open contact : 1
Number of contacts as normally closed contact : 1
Number of contacts as change-over contact : 0
Number of fault-signal switches : 0
Rated switch current (A) : 3
Rated voltage (V) : 230
Voltage type for actuating : AC
With auto test for earth leakage function : No
Suitable for max. number of poles main contact unit (total) : 2
Suitable for max. current main contact unit (A) : 6
