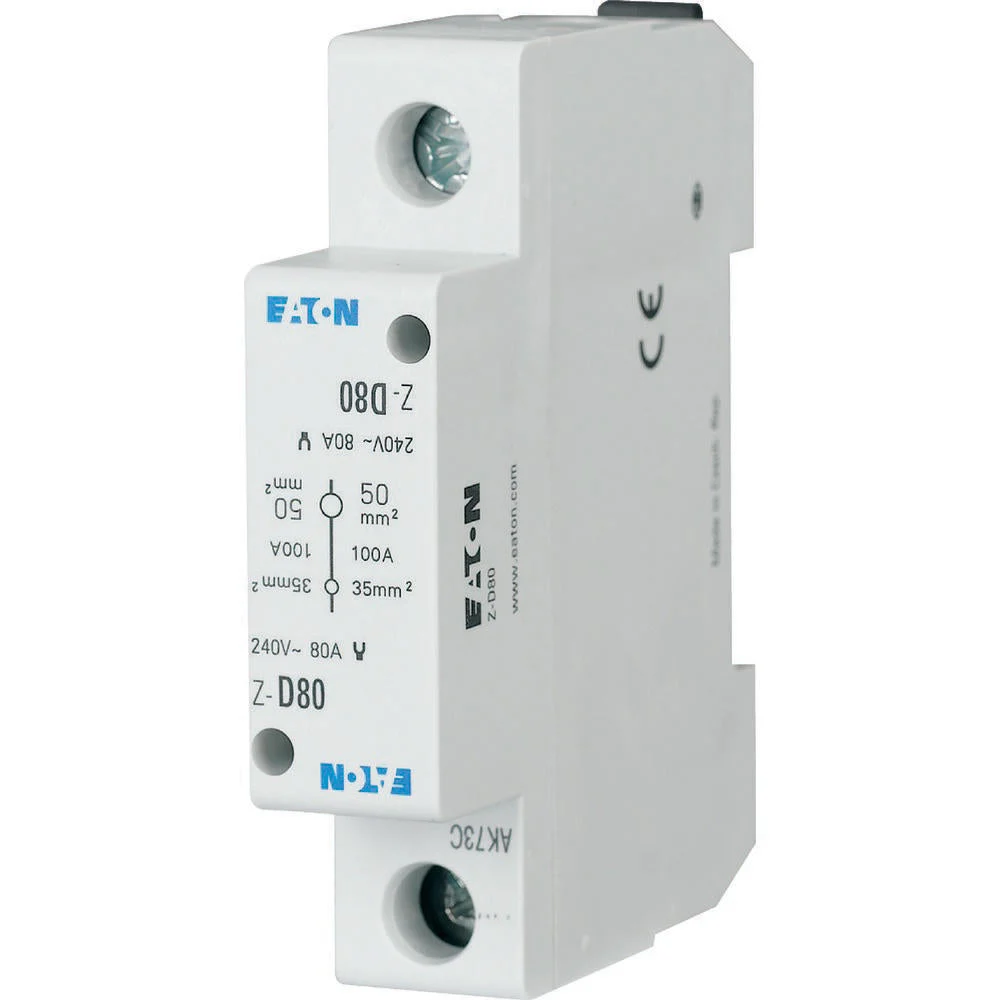

This Eaton Industries terminal is designed for the main cable connection, with safe-touch features for added security. It has a dimension of 17.5mm x 80mm and relies on a screw connection method. It includes one connection each for cable sizes greater than 25mm², less than 6mm², 10mm², 16mm², and 25mm². Also known as a feeder terminal, it has a rated operational current of 100A, frequency of 50-60Hz, and a standard front dimension of 45mm. Offering top-hat rail mounting, it has a mounting width of one SU (17.5mm), a terminal cross-section at the top of 1-35mm², and a terminal cross-section below of 2.5-50mm².
Specifications
Device fitting : Universal
Additional equipment : Other
Installed at the factory : No
Width in number of modular spacings : 1
Number of contacts as normally open contact : 1
Number of contacts as normally closed contact : 1
Number of contacts as change-over contact : 0
Number of fault-signal switches : 0
Rated switch current (A) : 100
Rated voltage (V) : 240
Voltage type for actuating : AC
With auto test for earth leakage function : No
Suitable for max. number of poles main contact unit (total) : 0
Suitable for max. current main contact unit (A) : 0
