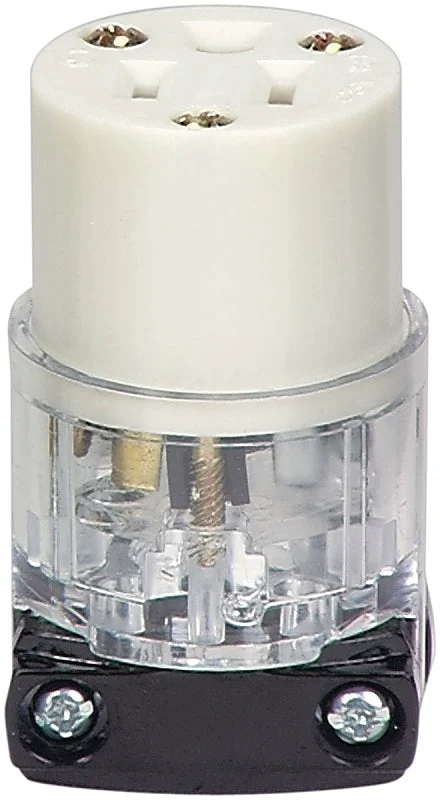

Hospital-grade. Meets all UL 498 requirements. High-impact -resistant thermoplastic housing. See-through terminal cover allows inspection of connections. NEMA construction and standard compliances. Color coded clamps. 15 A, 125 V. Boxed.
Unit: EA
UPC: 032664344503
Model Number: 8269
Features
- High-impact-resistant thermoplastic housings
- Assembly screws are speed-threaded and captive, reducing installation time
- Solid brass plug blades are firmly embedded in body
- Terminals in individual chambers to positively insulate conductors
- Clearly marked rating, NEMA configuration and standard compliances on face of device
- Terminal screws backed out ready for wiring
- Combination Slotted/Phillips head mounting and terminal screws ease installation with power screwdrivers
Additional Information
- Cable/Wire Size: 1/4 to 11/16
- Color: Clear
- Current Rating: 15
- Dimensions: 2.61 in L x 1.54 in W
- Grounding Type: Grounded
- Material: Thermoplastic
- NEMA Configuration: NEMA 5-15
- Number of Poles: 2
- Number Of Wires: 3
- Type: Straight Blade
- Voltage Rating: 125
