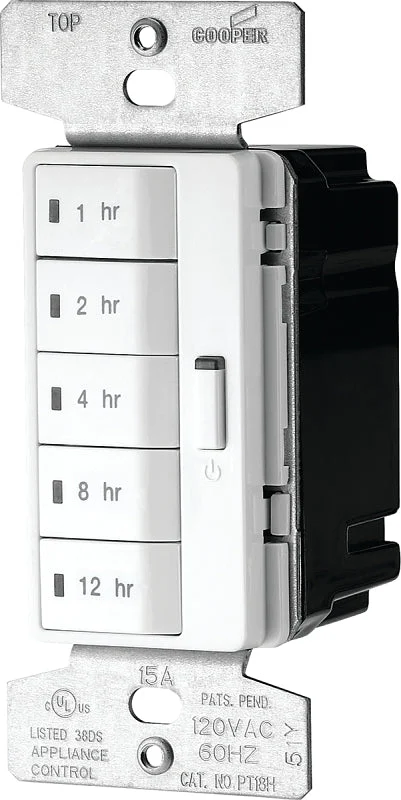

Accell timers are programmable hr or min time delay in 2 modes for preset groups or down to 1 min increments. Accell timers match the aesthetics of Accell dimmers and are available in 7 colors. Rated for up to 1800 W loads ac at 120 V and operates incandescent/halogen, magnetic low-voltage, electronic low-voltage, fluorescent, compact fluorescent and LED lighting load types. Ideal for both new construction and retrofit with no neutral required for installation.
Unit: EA
UPC: 032664723605
Model Number: PT18H-W-K
Features
- Manual over ride when timer functionality isn’t needed
- Five preset time intervals, easily programmable to alternate time intervals to suit your needs
- Horsepower-rated for 1/4 hp motor loads
- LED indication of time interval selected and countdown
- Automatically turns lights/fan On/Off after preset time
- Ideal for both new construction and retrofit with no neutral required for installation
Additional Information
- Color: White
- Current Rating: 15 A
- Depth: 1.8 in
- Finish: Gloss
- Frequency Rating: 60 Hz
- Height: 6.61 in
- HP Rating: 1/4 hp
- Installation Type: Box Wall
- Material: Polycarbonate
- Number of Poles: 1
- Suitable for: Compact Fluorescent Electronic Low-Voltage Fluorescent Incandescent/ Halogen Led and Magnetic Low-Voltage
- Temperature Rating: 0 to 40 deg C
- Time Setting: 1 2 4 8 12 hr Off
- Type: Programmable
- Voltage Rating: 120 V
- Wattage Rating: 1800 W
- Width: 1.39 in
