Side wire terminals accept up to number 10 solid or stranded wire. Rated for fluorescent lighting fixtures typical in commercial applications. 0.050 in thick steel mounting strap zinc-plated for corrosion resistance. Ground screw terminal standard. Meets all UL 20 requirements, Federal specifications WS896.
Unit: EA
UPC: 032664487705

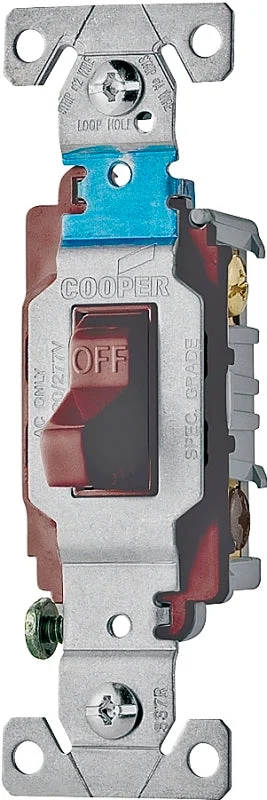

Model Number: CS315B
Features
- Patent pending spring cup toggle design for robust actuation
- Terminals accept up to #10 AWG solid or stranded
- Terminal screws backed out-ready for wiring
- Tri-combo head mounting and terminal screws ease installation
Additional Information
- Actuator Type: Cam
- Color: Brown
- Contact Material: Silver
- Current Rating: 15 A
- Dielectric Strength: 1500 V
- Housing Material: Nylon
- Mounting Type: Wall
- Number Of Positions: 3
- Temperature Rating: -20 to 60 deg C
- Terminal Type: Screw
- Voltage Rating: 120/277 V
- Wattage Rating: 0.5 to 2 hp
