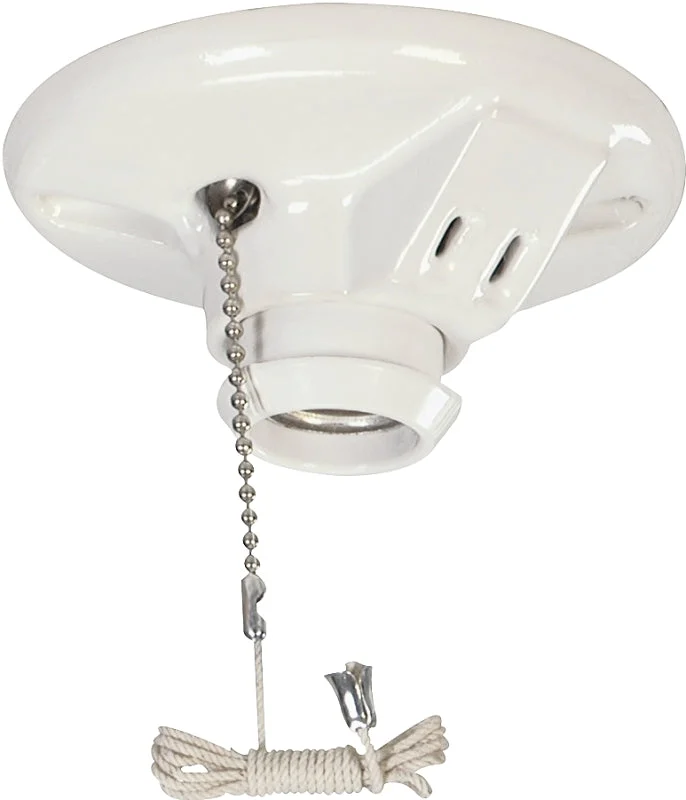

With 15 A 125 VAC outlet. High-strength insulator porcelain. Mounts on 4 in outlet boxes with breakout for 3-1/4 in box mounting. Pull chain socket interior is removable. Includes ball chain, 3 ft of cord, connector and end bell. Terminal screws are backed out ready for wiring without removing the interior. Dust ring protects against plaster and dirt. UL 496 listed, NOM certified, meets CSA requirements. 15 A, 125 V, 660 W.
Unit: EA
UPC: 032664259906
Model Number: 669-SP
Features
- Top wire versions have terminal screws backed out ready for wiring without removing interior
- Push wire terminals are top wired with two push-in terminals and two screw terminals for continuous wiring
- Plastic models made with high-temperature thermoset plastic to reduce breakage
- Porcelain models made of high-strength insulator porcelain pull chain versions feature removable interiors
- Mounts on 4 in outlet boxes with breakout for 3-1/4 in box mounting
Additional Information
- Base Type: Medium
- Color: White
- Connection Type: Screw
- Dimensions: 4.5 in Dia x 2.14 in H
- Includes: (2) Screws (1) Ball Chain (1) 3 ft Cord Connector and (1) End Bell
- Mounting Type: Box
- Voltage Rating: 125 VAC
- Wattage Rating: 660 W
- Wire Size: 14 to 10 AWG
- Wiring Type: Top
