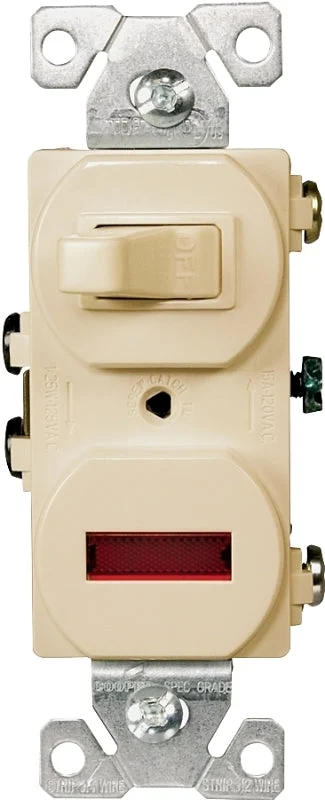

Single pole side wire switch. Grounding terminal screw standard. 15 A, 120/277 V rating. 0.050 in thick steel mounting strap zinc-plated for corrosion resistance. Terminal screws backed out ready for wiring. Side wire terminals accept up to #10 solid or stranded wire. Pilot light rating of 1/25 W – 120 V, may be wired to indicate power “on” or power “off”. Combination slot/Phillips head mounting and terminal screws.
Unit: EA
UPC: 032664161803
Model Number: 277V-SP-L
Features
- Grounding terminal screw standard
- Receptacles have triple wipe line contacts and double wipe ground contacts to insure long-term plug retention
- Thick steel mounting strap is zinc-plated for corrosion resistance
- Break-off provision for wiring both devices on same circuit or on separate circuits
- Terminal screws backed out and ready for wiring
- Pilot light may be wired to indicate power on or power off
- Combination Phillips/slotted screw heads ensure faster installation
Additional Information
- Actuator Type: Toggle
- Color: Ivory
- Current Rating: 15 A
- Dimensions: 3.28 in L x 1.375 in W x 0.95 in D
- Housing Material: Steel
- Mounting Type: Strap
- Number of Poles: 1
- Switch Operation: Back and Side
- Temperature Rating: -40 to 65 deg C
- Terminal Type: Screw
- Voltage Rating: 120/277 V
