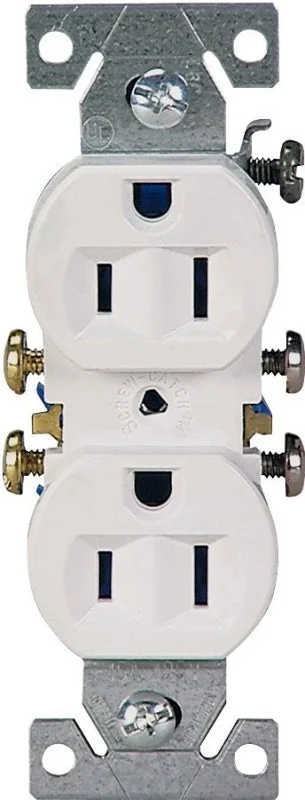

Standard duplex receptacles feature longer, wider straps providing 40% more contact area to the wallboard. Virtually eliminates floating installations. Patented built-in wire stripper for #14 and #12 wire to speed installation. Patented built-in wire looper for pre-looping. Tri-combo screws accept slotted, Phillips and Robertson-head tools for installation flexibility. Terminal screws backed out – ready for wiring. Side wire terminals accept up to #10 solid or stranded wire. Push-in terminals accept #14 solid wire.
Unit: PK 10
UPC: 032664554803
Model Number: 270W10
Features
- Longer, wider strap provides 40% more contact area to wallboard
- Terminal screws backed out ready for wiring
- Side wire terminals accept up to #10 solid or stranded wire
- Patented built-in wire stripper for #12 and #14 AWG wire to speed installation
- Double-wipe ground contacts ensure long-term ground retention
- Easy access split circuit break-off tab
- Tri-combo screws accept Slotted, Phillips and Robertson head tools for installation flexibility
Additional Information
- Color: White
- Current Rating: 15 A
- Dimensions: 4.19 in L x 1.30 in W x 0.69 in D
- Frequency Rating: 60 Hz
- Material: PVC
- Mounting Type: Wall
- NEMA Configuration: 5-15R
- Number of Poles: 2
- Number Of Wires: 3
- Operating Temperature: -20 to 60 deg C
- Voltage Rating: 125 V
- Wire Size: 14 to 10 AWG
- Wiring Type: Push-in Side
