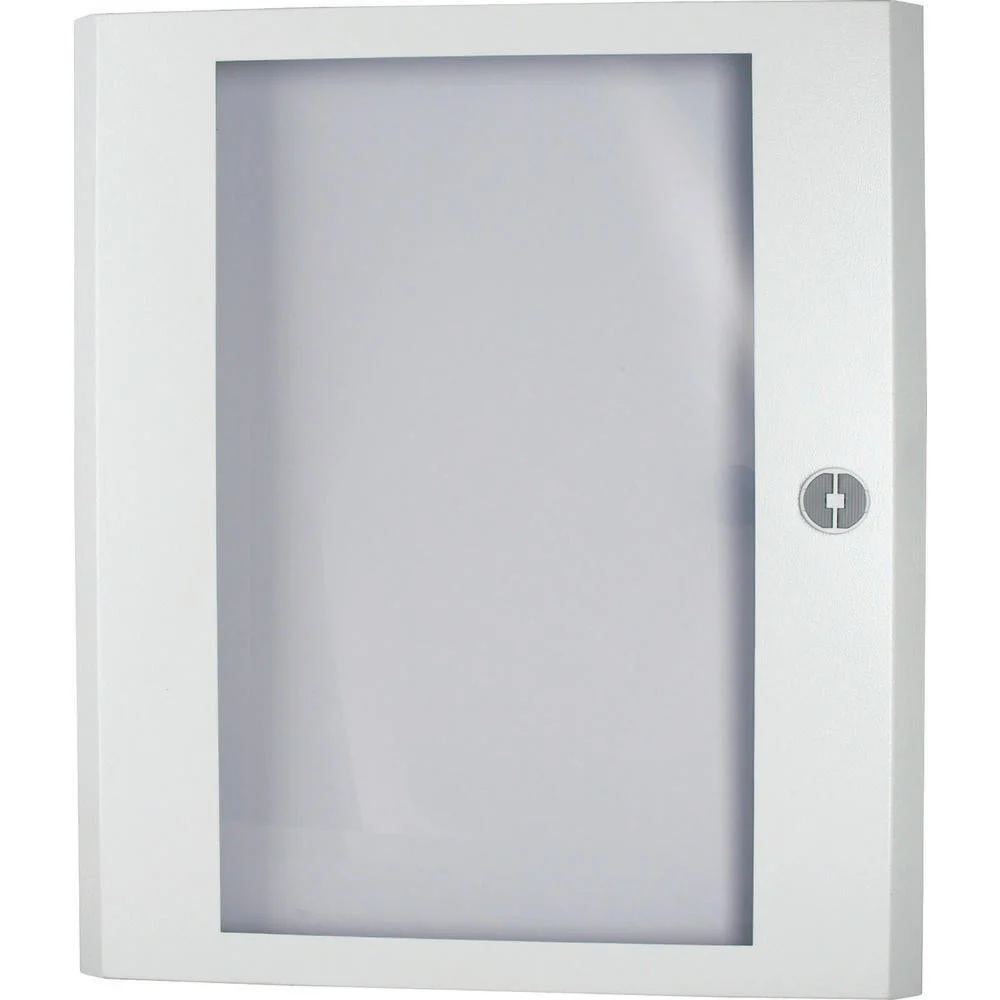

The Eaton Industries XBoard BP door is designed for a cabinet or desk, made of white, powder-coated steel, with dimensions of 815x410x45mm. It has a protection grade of IP30, and is suitable for a cabinet width of 800mm. This sheet steel door, with a transparent 2mm plexiglass panel, has a quick installation and disassembly feature. It can be fitted either on the right or left with an opening angle of 167° and a 1-point lock with a cam lock. The door is painted with RAL 9016 powder-spray paint with sheet thickness 1mm. The door comes with an earth kit.
Specifications
Model : Stop door
Version as glazed door : Yes
Version as door for disconnecting switch interlocking : No
Width (mm) : 815
Height (mm) : 410
Depth (mm) : 45
EMC-version : No
Material : Steel
Surface finishing : Powder coating
Color : White
Degree of protection (IP) : IP30
Degree of protection (NEMA) : Other
