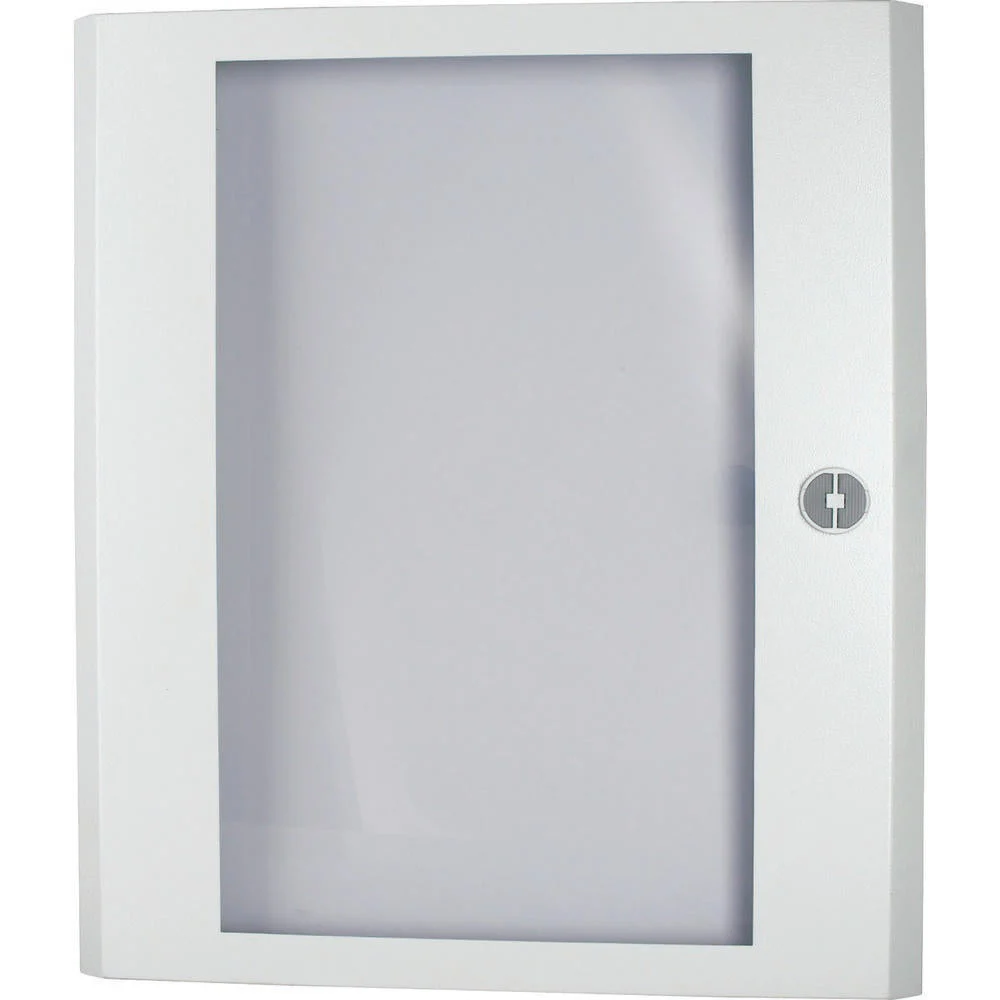

Eaton White Door With Transparent Inspection Window – 292461

The Eaton Industries XBoard BP is a sheet steel door with a dimension of 815x710x45mm, ideal for a cabinet or desk with a width of 800mm. Coming in white, it features a powder-coated surface and has a protection grade of IP30. This door is designed with a transparent panel made from 2mm-thick plexiglass that provides visibility. Quick to install and dismantle, it can be fitted on either the right or left, providing a 167° opening angle. It is secured with a 1-point lock equipped with a cam lock. The package includes one door and an earth kit.

Specifications

Model : Stop door
Version as glazed door : Yes
Version as door for disconnecting switch interlocking : No
Width (mm) : 815
Height (mm) : 710
Depth (mm) : 45
EMC-version : No
Material : Steel
Surface finishing : Powder coating
Color : White
Degree of protection (IP) : IP30
Degree of protection (NEMA) : Other
