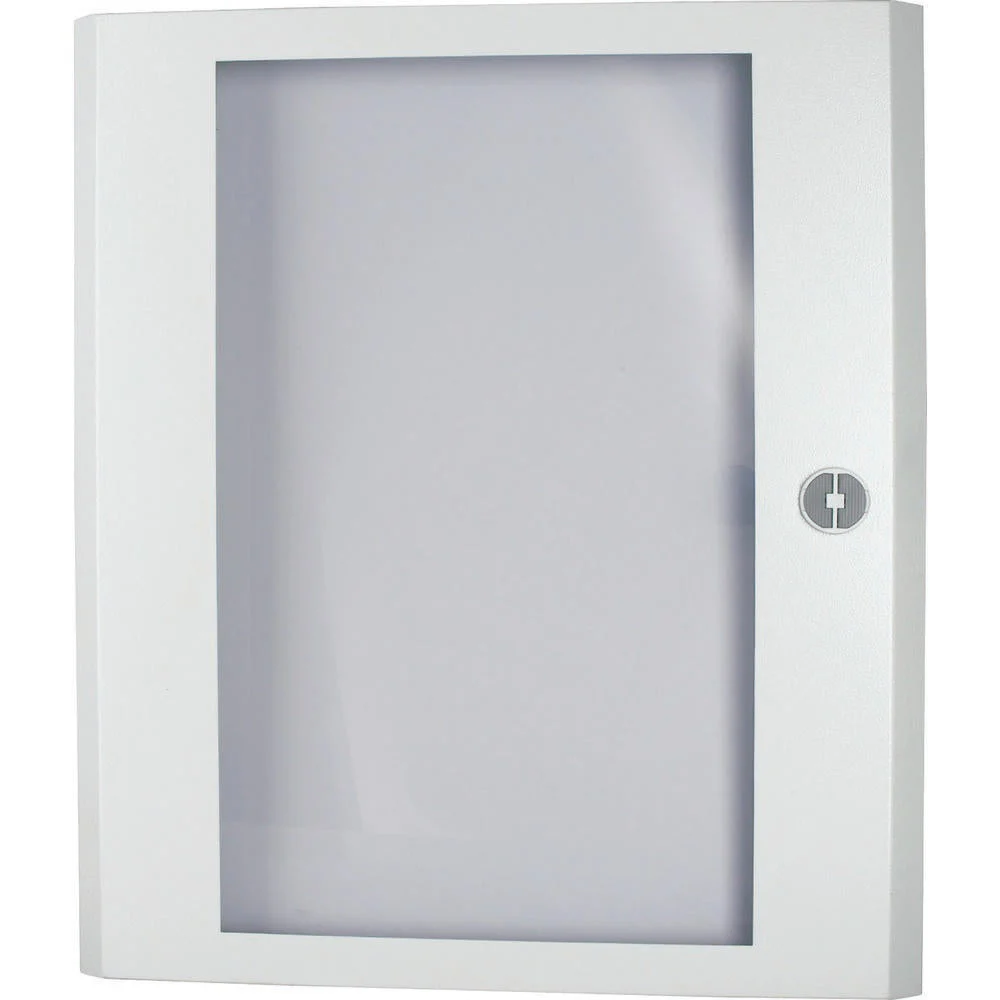

The Eaton Industries XBoard BP is a door/bed-tableau designed for cabinets or desks, made of white, powder-coated steel. With dimensions of 615x410x45mm, it features a swing door design, visible door feature, and has an IP protection rating of IP30. The door is suitable for a cabinet width of 600mm. It comes with a window fitted on the front for a height of 400 mm and width of 600 mm, enabling quick installation and disassembly. The door, which can be attached on either the right or left, has a maximum opening angle of 167° and includes a 1-point lock system with a cam lock. The door is powder-coat painted using RAL 9016 on a 1mm thick steel sheet and features a 2mm thick transparent plexiglass panel. The door package includes an earth kit.
Specifications
Model : Stop door
Version as glazed door : Yes
Version as door for disconnecting switch interlocking : No
Width (mm) : 615
Height (mm) : 410
Depth (mm) : 45
EMC-version : No
Material : Steel
Surface finishing : Powder coating
Color : White
Degree of protection (IP) : IP30
Degree of protection (NEMA) : Other
