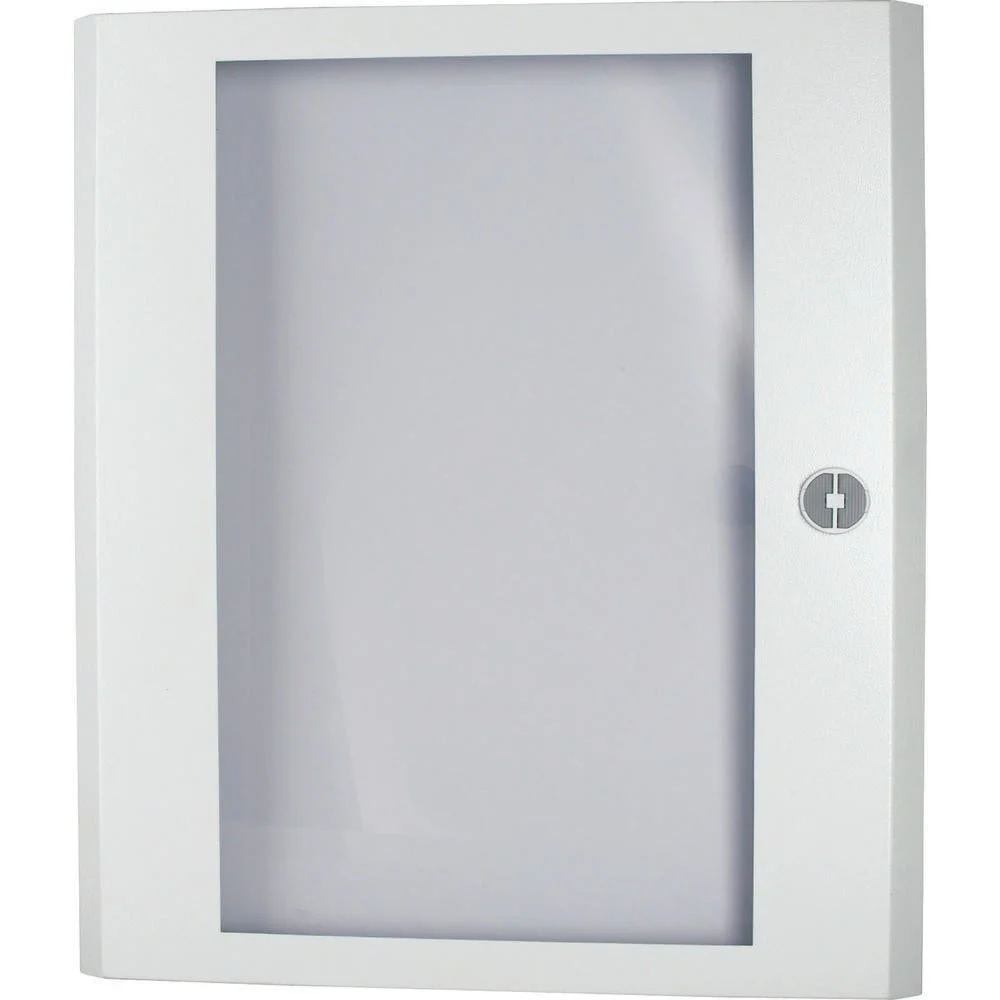

The Eaton Industries XBoard BP door is designed for case or desk use. It has a front-mounted window, is made from white powder-coated sheet steel and measures 415x1210x45mm. The door features a right or left-side fitting ability, an opening angle of 167° and has a protective degree of IP30. It also features a 1-point lock with a cam lock. The thickness of the sheet is 1mm and it includes a 2mm transparent plexiglass panel. This door can be quickly installed and disassembled. The package includes one door and an earth kit, suitable for 400mm wide cabinet.
Specifications
Model : Stop door
Version as glazed door : Yes
Version as door for disconnecting switch interlocking : No
Width (mm) : 415
Height (mm) : 1210
Depth (mm) : 45
EMC-version : No
Material : Steel
Surface finishing : Powder coating
Color : White
Degree of protection (IP) : IP30
Degree of protection (NEMA) : Other
