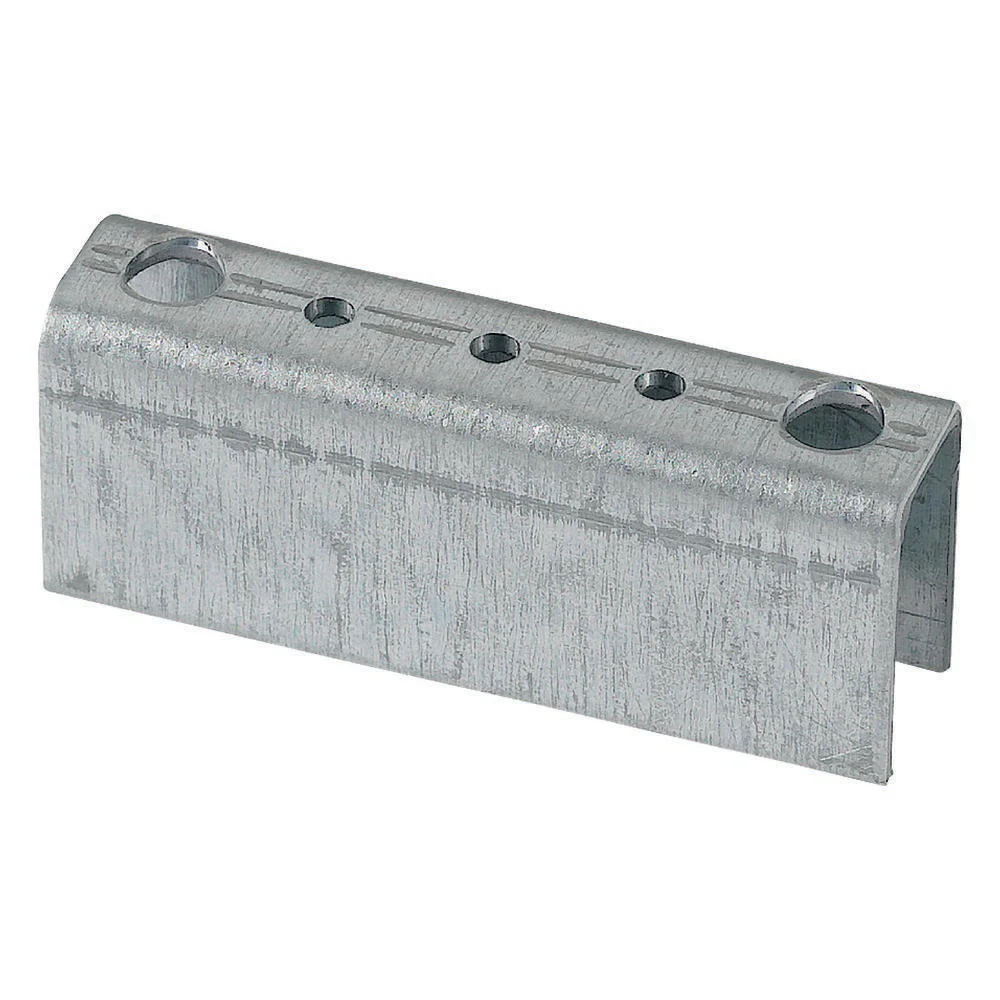

The Eaton Industries XBoard XVTL EP profile is designed for cabinet or desk application, made of steel with a length of 65mm. Its design incorporates metric specifications, is robustly secured with screws, and has a support rail height of 65mm. The surface finish is accomplished through zinc treatment. This standard flush-mounting EP system is optimized for surface mounting of factory-finished, type-tested switchgear assemblies.
Specifications
Length (mm) : 25
Width (mm) : 16
Height (mm) : 65
Slit width (mm) : 9.5
Material thickness (mm) : 2
Profile shape : U-profile
Model : Singular profile
Type of perforation : 3 sides punched
Hole width (mm) : 3.6
With toothing : No
Snap-off : No
Load bearing capacity (kN) : 0
Area moment of inertia Iy (cm4) : 0
Area of inertia Iz (cm4) : 0
Moment of resistance Wy (cm³) : 0
Moment of resistance Wz (cm³) : 0
Suitable for circuit integrity : No
Material : Steel
Material quality : Other
Surface protection : Galvanic/electrolytic zinc plated
Color : Other
RAL-number : 0
Weight (kg) : 0.053
