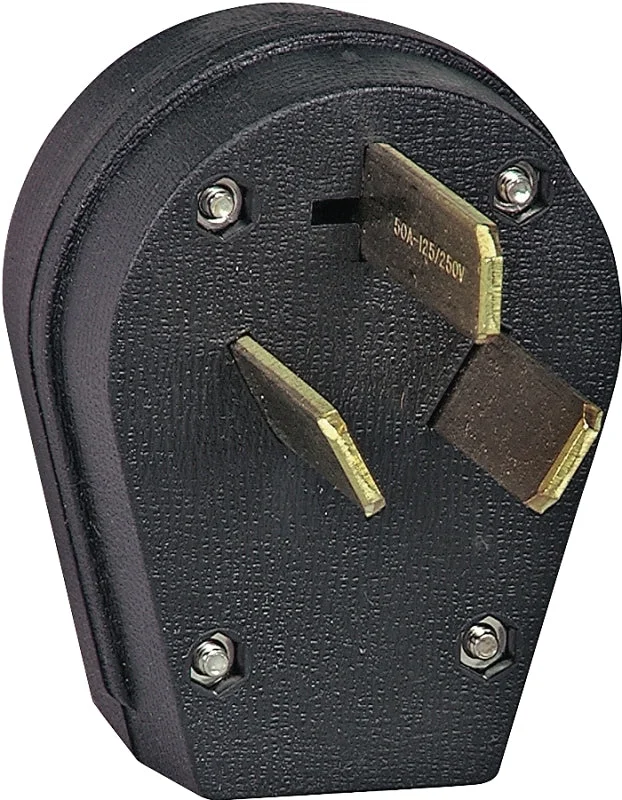

Heavy-duty, meets all UL 498 requirements. Furnished with blades for 30 and 50 A configurations. Terminals have pressure plates to protect wires. NEMA 10-50.
Unit: EA
UPC: 032664517853
Model Number: S80-SP
Features
- Dual-current model furnished with blades
- Terminals have pressure plates to protect wires
- Made from abuse-resistant thermoplastic
- For replacement use in older homes with three-wire range and dryer connection points
- Universal plugs include blades for both 30 A and 50 A configurations of the same voltage
Additional Information
- Cable/Wire Size: 10 to 8
- Color: Black
- Connection Type: Screw
- Current Rating: 30/50
- Dimensions: 2.92 in L x 2.8 in W x 1.37 in D
- Grounding Type: Non-Grounded
- Material: Thermoplastic
- NEMA Configuration: NEMA 10-30P 10-50P
- Number of Poles: 3
- Number Of Wires: 3
- Operating Temperature: -20 to 60
- Type: Angled Universal Power
- Voltage Rating: 125/250
