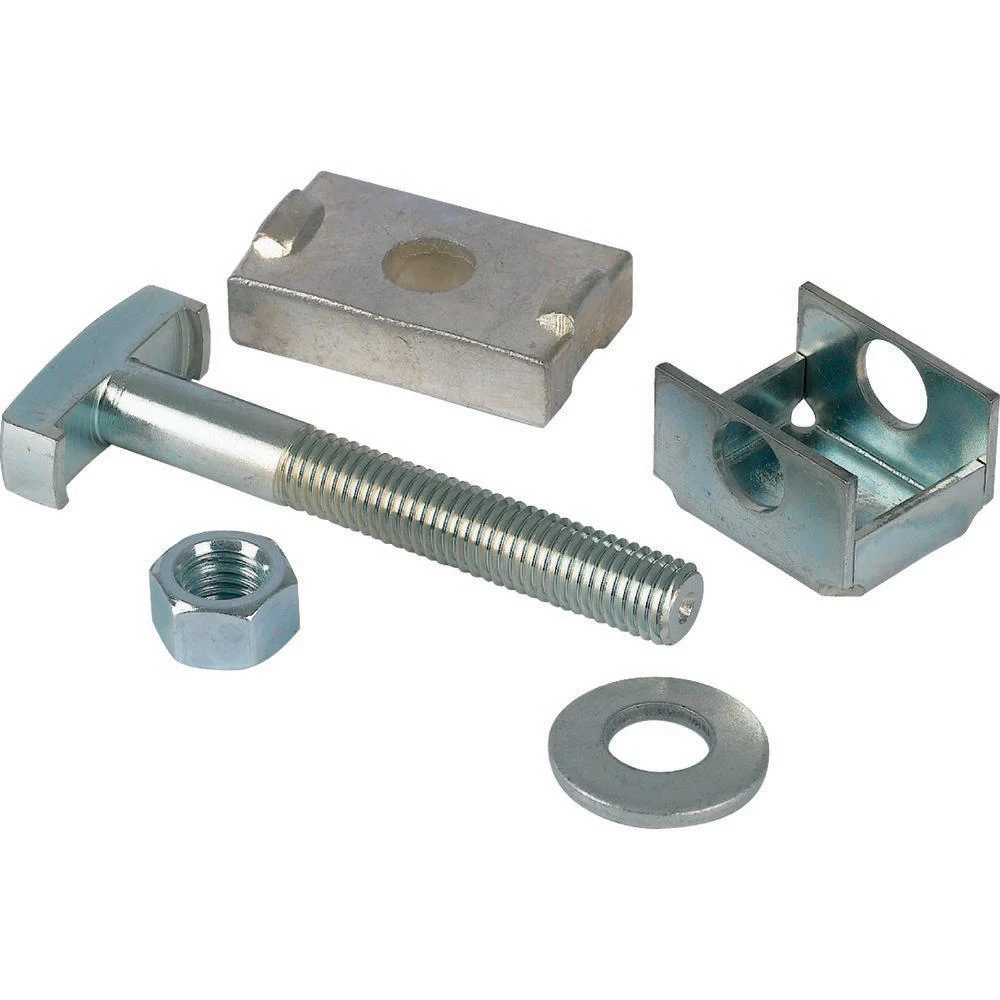

Eaton Rail System Clamp 1600A For Copper Strip – 084350

The Eaton Industries XEnergy terminal clamp for busbar has a busbar thickness of 10mm and a busbar width of 30 – 60mm. The clamp has a width of 17mm and is suitable for connecting with braided wire. It has a maximum conductor cross-section of 1000mm² and a maximum rated operational current (Ie) of 1600A.

Specifications

Busbar thickness (mm) : 10 mm to 10 mm
Busbar width (mm) : 30 mm to 60 mm
Suitable for : Flat rail
Width clamp (mm) : 17
Max. conductor cross section (mm²) : 1000
Max. rated operation current Ie (A) : 1600
Suitable for round conductor connection : No
Suitable for sector conductor connection : No
Suitable for strip conductor connection : Yes
