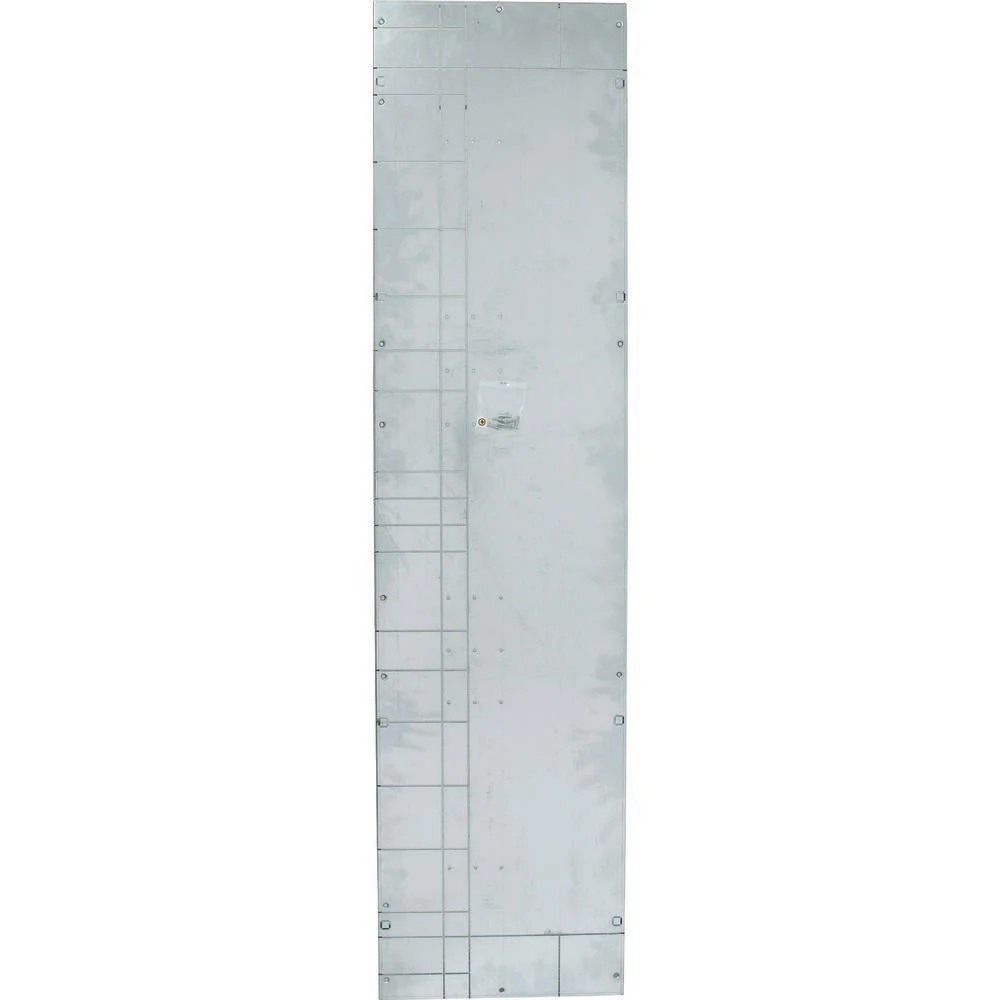

Eaton Partition Side Wall For HxD 1400x300mm Galvanized IP20 – 114734

The Eaton Industries XEnergy partition side wall is a single component of a larger assembly, made of durable grey steel with a galvanized surface finish. The dimensions of the partition are 15mm in width and 1307mm in height, designed to fit a cabinet with a build depth of 300mm. It features a grid size of 12.5mm and is suitable for the internal subdivision forms 2a and 2b. The partition can also accommodate a section height of 1400mm, a depth of 800mm and it has a material thickness of 1.5 mm. The component complies with IP20 standards.

Specifications

Modular spacing (mm) : 12.5
Suitable for enclosure building width (mm) : 300
Suitable for enclosure building depth (mm) : 300
Width (mm) : 190
Height (mm) : 50
Material : Steel
Surface finishing : Galvanized
Color : Grey
RAL-number : 0
With cable entry : No
Number of height units : 0
With lock : No
Construction type : Individual part
For internal separation form 2a : Yes
For internal separation form 2b : Yes
For internal separation form 3a : Yes
For internal separation form 3b : Yes
For internal separation form 4a : Yes
For internal separation form 4b : Yes
