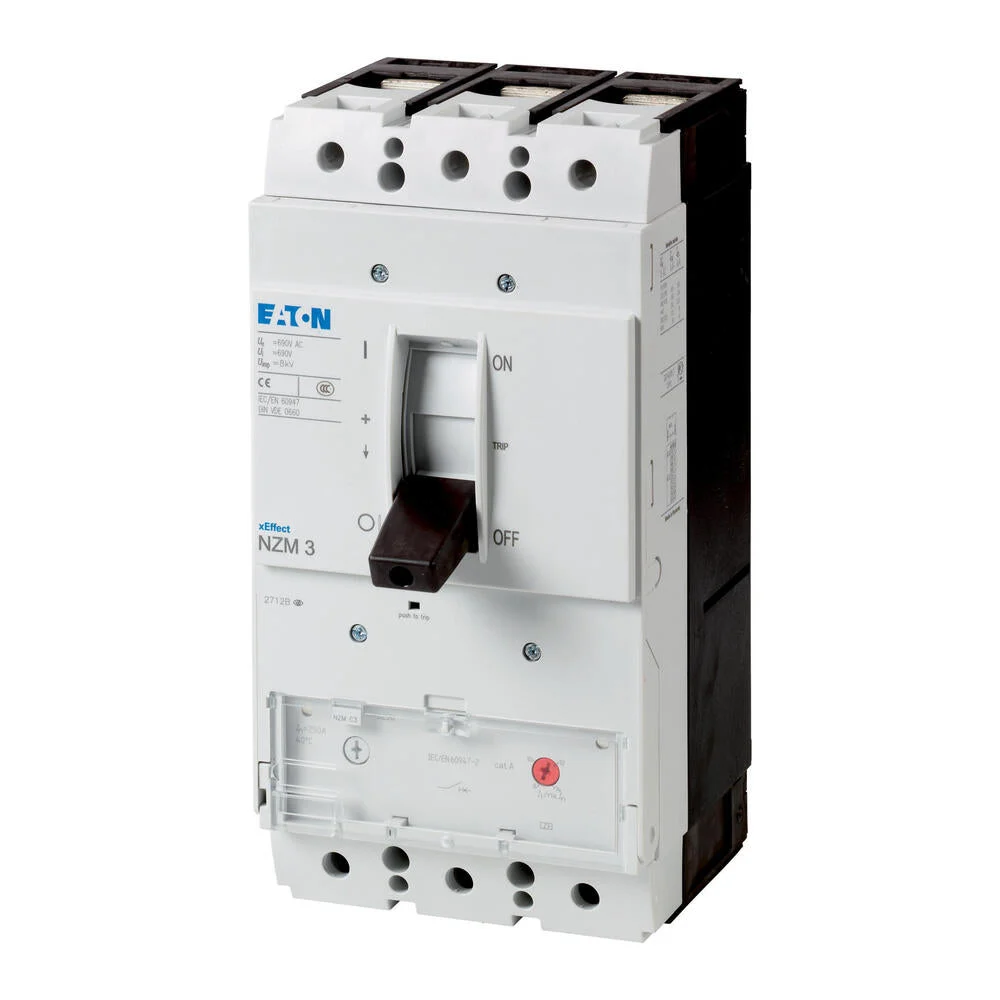

The Eaton Industries MCCB Motor Protection Switch, with dimensions of 140x166x275mm, is designed for built-in device installation. It has a nominal continuous current Iu of 320A and the main circuit connection method is screw connection. The shutdown technology is magnetic and it has a protection degree (IP) of IP20. Its operating voltage (measurement voltage) is 690V. The NZM..-S series circuit breakers are suitable for all application with just four compact sizes for the IEC market. They feature modular function groups for flexible mounting and come with magnetic short-circuit release in connection with an overload relay. Also, they have short-circuit release without overload tip. Note that these circuit-breakers meet all requirements of the switching category AC-3.
Specifications
Overload release current setting (A) : 0 A to 0 A
Adjustment range undelayed short-circuit release (A) : 8 A to 14 A
With thermal protection : No
Phase failure sensitive : No
Switch off technique : Magnetic
Rated operating voltage (V) : 690 V to 690 V
Rated permanent current Iu (A) : 320
Rated operation power at AC-3, 230 V (kW) : 90
Rated operation power at AC-3, 400 V (kW) : 160
Type of electrical connection of main circuit : Screw connection
Type of control element : Rocker lever
Device construction : Built-in device fixed built-in technique
With integrated auxiliary switch : No
With integrated under voltage release : No
Number of poles : 3
Rated short-circuit breaking capacity lcu at 400 V, AC (kA) : 35
Degree of protection (IP) : IP20
Height (mm) : 275
Width (mm) : 140
Depth (mm) : 166
