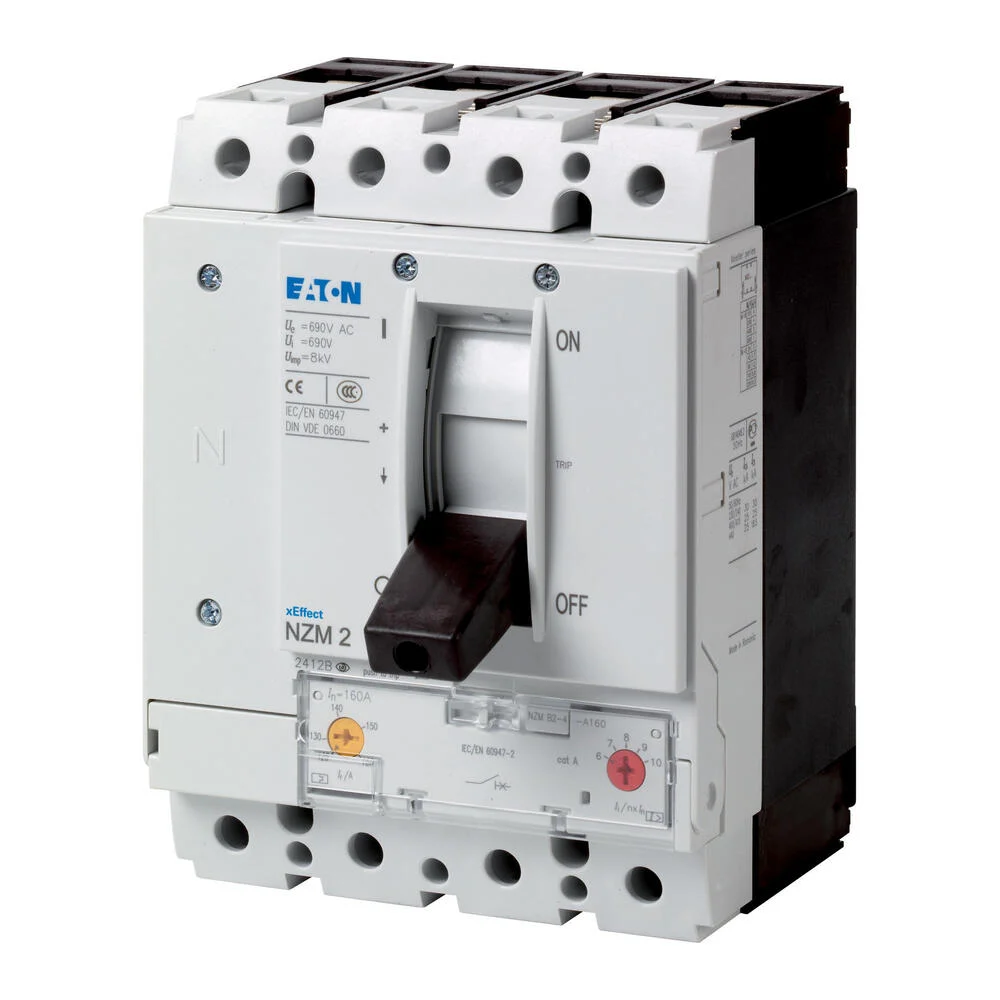

The Eaton Industries NZMN A circuit breaker is a 4 pole device with a rated uninterrupted current (In=Iu) of 250A and a switching capacity at 400/415V 50Hz(Icu) of 50kA. The device operates at a nominal voltage of 690V. It has an adjustable overload protection range between 200 – 250A and an adjustable immediate short circuit range from 6 – 10A. This device is designed for fixed installation with a screw connection. It complies with the IEC standards and offers system and cable protection functionality.
Specifications
Rated permanent current Iu (A) : 250
Rated voltage (V) : 690 V to 690 V
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz (kA) : 50
Overload release current setting (A) : 200 A to 250 A
Adjustment range short-term delayed short-circuit release (A) : 0 A to 0 A
Adjustment range undelayed short-circuit release (A) : 6 A to 10 A
Integrated earth fault protection : No
Type of electrical connection of main circuit : Screw connection
Device construction : Built-in device fixed built-in technique
Suitable for DIN rail (top hat rail) mounting : No
DIN rail (top hat rail) mounting optional : Yes
Number of auxiliary contacts as normally closed contact : 0
Number of auxiliary contacts as normally open contact : 0
Number of auxiliary contacts as change-over contact : 0
With switched-off indicator : No
With integrated under voltage release : No
Number of poles : 4
Position of connection for main current circuit : Front side
Type of control element : Rocker lever
Complete device with protection unit : Yes
Motor drive integrated : No
Motor drive optional : Yes
Degree of protection (IP) : IP20
