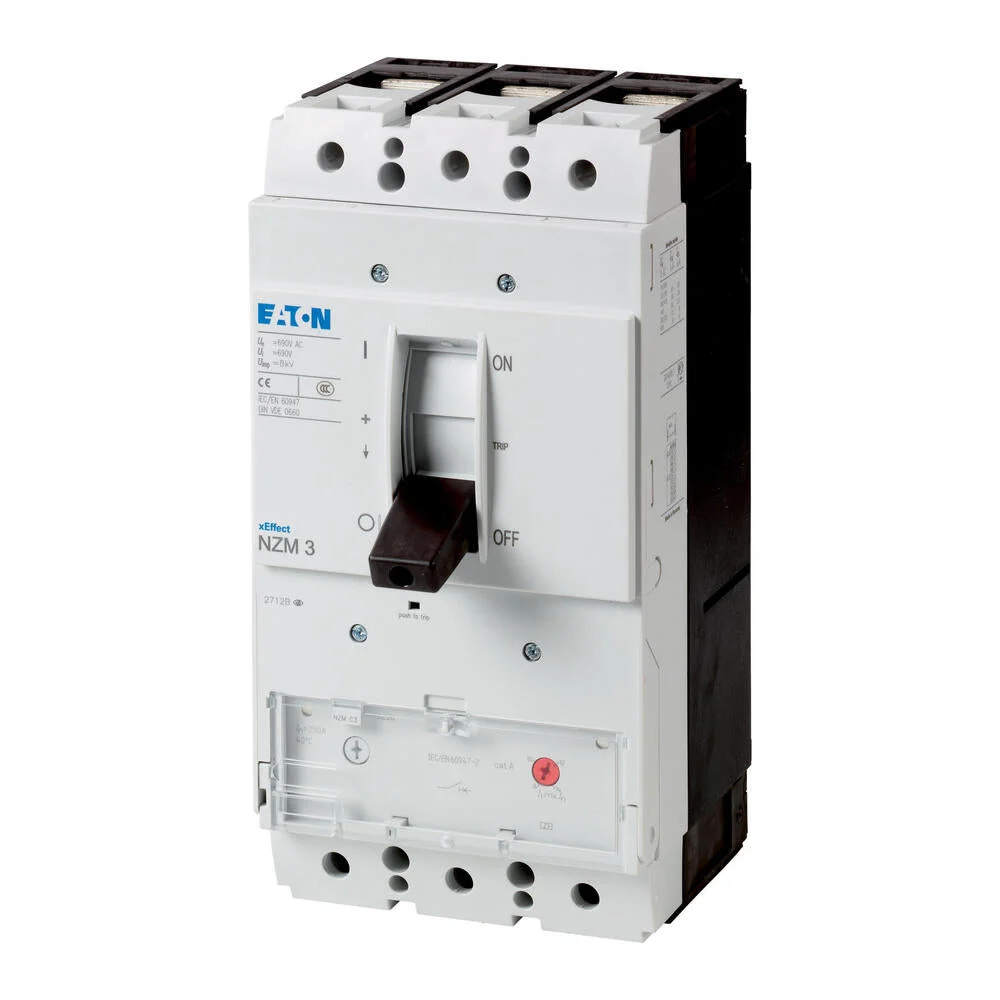

The Eaton Industries MCCB motor protection circuit breaker measures 140x166x275mm. It’s a built-in device with a nominal continuous current Iu 400A and utilizes the screw connection for the main circuit. It features magnetic trip technology and an IP20 protection degree. The operation voltage is 690V. Similarly, the NZM..-S circuit-breakers only require four compact sizes to cover all applications and are suitable for the IEC market. They offer modular function groups for flexibility in mounting and come with a magnetic short-circuit release in connection with an overload relay. They also have a short-circuit release without an overload trip function. These circuit-breakers fulfill all requirements of the AC-3 switching category.
Specifications
Overload release current setting (A) : 0 A to 0 A
Adjustment range undelayed short-circuit release (A) : 7 A to 44328 A
With thermal protection : No
Phase failure sensitive : No
Switch off technique : Magnetic
Rated operating voltage (V) : 690 V to 690 V
Rated permanent current Iu (A) : 400
Rated operation power at AC-3, 230 V (kW) : 132
Rated operation power at AC-3, 400 V (kW) : 200
Type of electrical connection of main circuit : Screw connection
Type of control element : Rocker lever
Device construction : Built-in device fixed built-in technique
With integrated auxiliary switch : No
With integrated under voltage release : No
Number of poles : 3
Rated short-circuit breaking capacity lcu at 400 V, AC (kA) : 130
Degree of protection (IP) : IP20
Height (mm) : 275
Width (mm) : 140
Depth (mm) : 166
