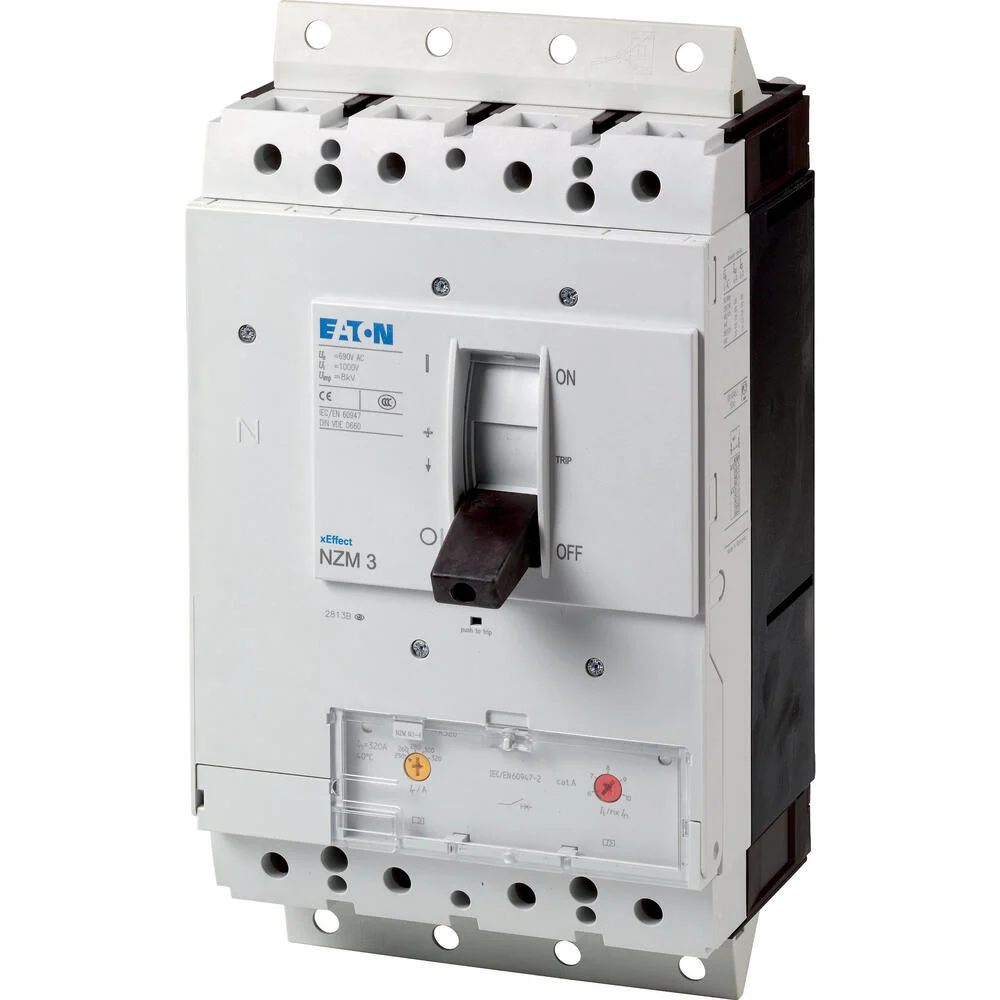

Eaton NZMC3-4-A400-SVE Circuit Breaker 4P 400A Plug-In Module – 168466

The Eaton Industries MCCB (Moulded Case Circuit Breaker) is part of the NZM series which are suitable for the IEC market. They are designed to cover all application cases and come in just four compact sizes for optimal space-saving. The installation of these circuit breakers is designed for flexibility as they employ the use of modular function groups.

Specifications

Rated permanent current Iu (A) : 400
Rated voltage (V) : 690 V to 690 V
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz (kA) : 36
Overload release current setting (A) : 320 A to 400 A
Adjustment range short-term delayed short-circuit release (A) : 0 A to 0 A
Adjustment range undelayed short-circuit release (A) : 6 A to 10 A
Integrated earth fault protection : No
Type of electrical connection of main circuit : Screw connection
Device construction : Built-in device plug-in technique
Suitable for DIN rail (top hat rail) mounting : No
DIN rail (top hat rail) mounting optional : No
Number of auxiliary contacts as normally closed contact : 0
Number of auxiliary contacts as normally open contact : 0
Number of auxiliary contacts as change-over contact : 0
With switched-off indicator : No
With integrated under voltage release : No
Number of poles : 4
Position of connection for main current circuit : Front side
Type of control element : Rocker lever
Complete device with protection unit : Yes
Motor drive integrated : No
Motor drive optional : Yes
Degree of protection (IP) : IP20
