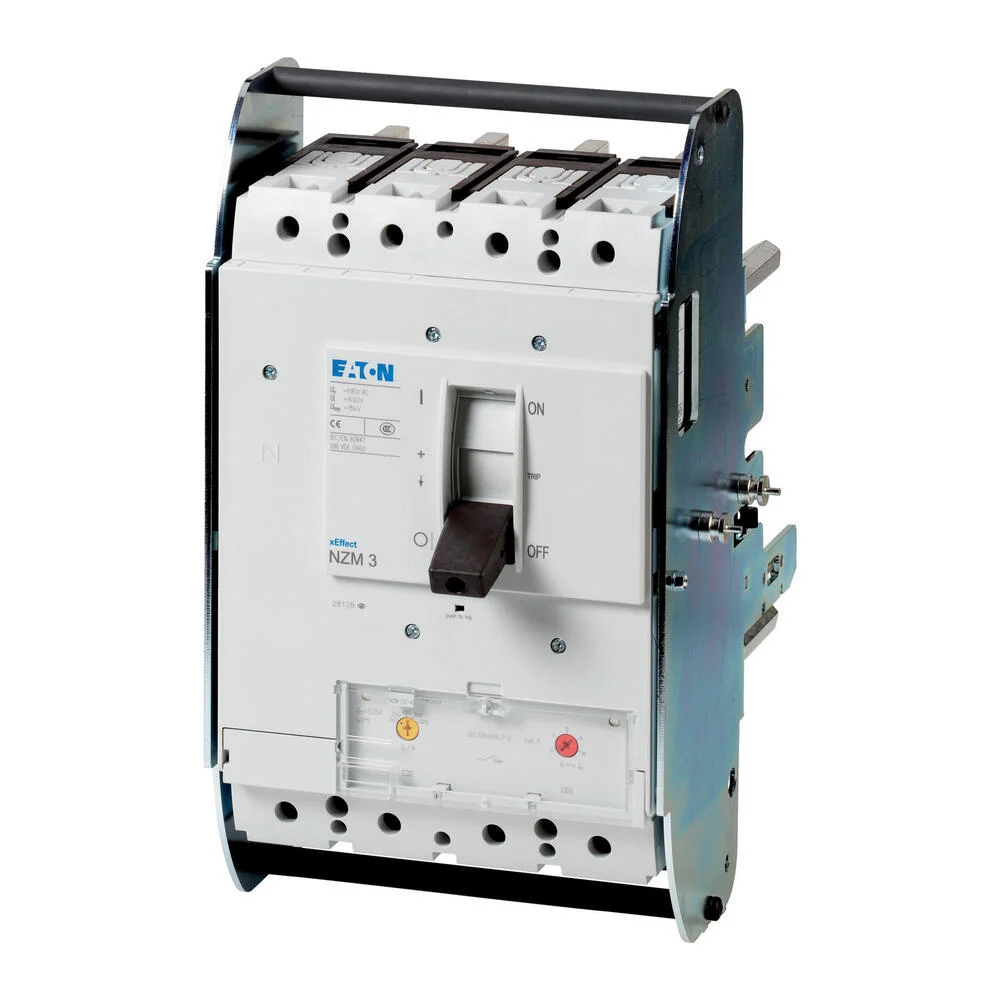

The Eaton Industries MCCB Circuit-breaker NZM3, a 4 pole switch operates with a switching capacity of 400/415 V 50 Hz, and rated uninterrupted current (Icu) of 36 kA. This breaker also supports a rated current (In = Iu) of 400 A. It is suitable for withdrawable type of installations, utilizing screw connections. It is standardized and approved by IEC. Furthermore, it primarily serves the protective function for system and cable protection.
Specifications
Rated permanent current Iu (A) : 400
Rated voltage (V) : 690 V to 690 V
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz (kA) : 36
Overload release current setting (A) : 320 A to 400 A
Adjustment range short-term delayed short-circuit release (A) : 0 A to 0 A
Adjustment range undelayed short-circuit release (A) : 6 A to 10 A
Integrated earth fault protection : No
Type of electrical connection of main circuit : Screw connection
Device construction : Built-in device slide-in technique (withdrawable)
Suitable for DIN rail (top hat rail) mounting : No
DIN rail (top hat rail) mounting optional : No
Number of auxiliary contacts as normally closed contact : 0
Number of auxiliary contacts as normally open contact : 0
Number of auxiliary contacts as change-over contact : 0
With switched-off indicator : No
With integrated under voltage release : No
Number of poles : 4
Position of connection for main current circuit : Front side
Type of control element : Rocker lever
Complete device with protection unit : Yes
Motor drive integrated : No
Motor drive optional : Yes
Degree of protection (IP) : IP20
