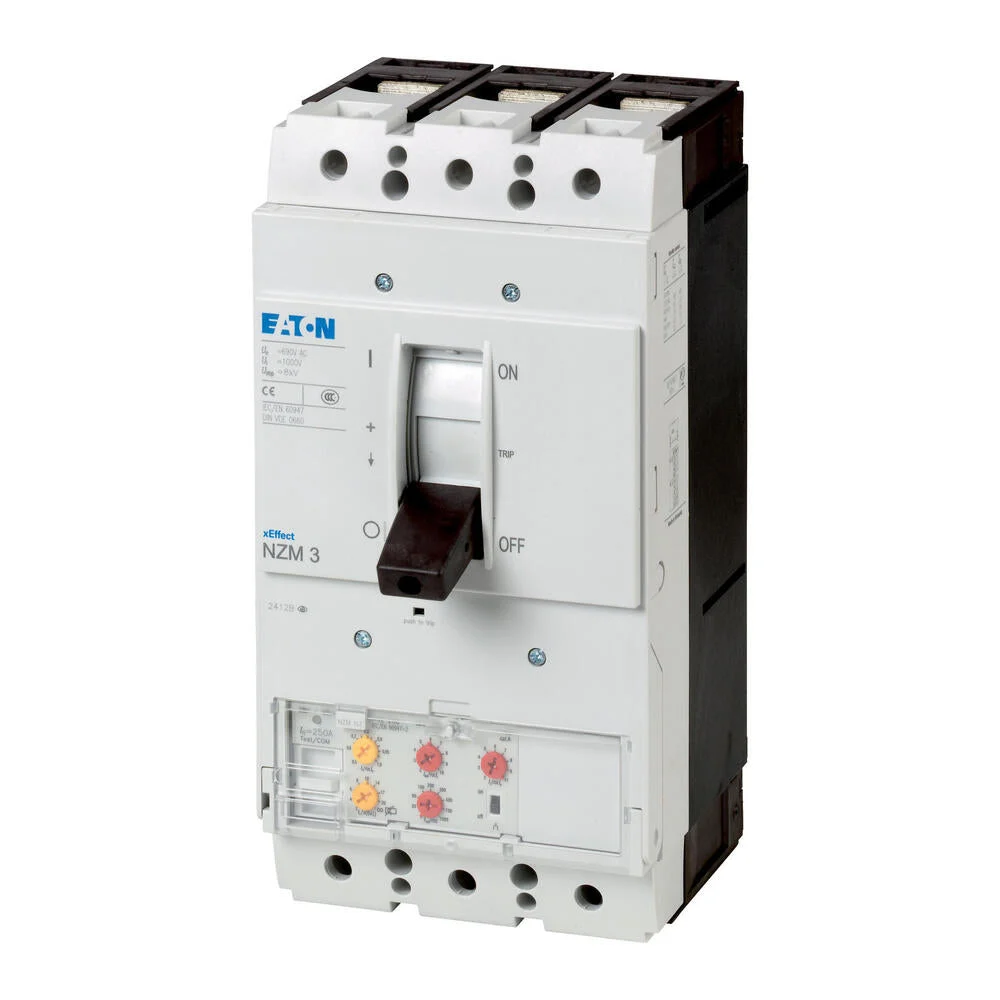

The Eaton Industries MCCB Circuit-breaker NZM3 is a 3-pole device with a switching capacity of 400/415 V 50 Hz and an interrupting capacity (Icu) of 50 kA. Its rated current equals its rated uninterrupted current, or In = Iu, and is 400 A. The installation type for this breaker is fixed and features a box terminal. In compliance with IEC standards, its protective function covers systems, cables, selectivity, and generator protection.
Specifications
Rated permanent current Iu (A) : 400
Rated voltage (V) : 690 V to 690 V
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz (kA) : 50
Overload release current setting (A) : 200 A to 400 A
Adjustment range short-term delayed short-circuit release (A) : 400 A to 4000 A
Adjustment range undelayed short-circuit release (A) : 800 A to 4400 A
Integrated earth fault protection : No
Type of electrical connection of main circuit : Frame clamp
Device construction : Built-in device fixed built-in technique
Suitable for DIN rail (top hat rail) mounting : No
DIN rail (top hat rail) mounting optional : No
Number of auxiliary contacts as normally closed contact : 0
Number of auxiliary contacts as normally open contact : 0
Number of auxiliary contacts as change-over contact : 0
With switched-off indicator : No
With integrated under voltage release : No
Number of poles : 3
Position of connection for main current circuit : Front side
Type of control element : Rocker lever
Complete device with protection unit : Yes
Motor drive integrated : No
Motor drive optional : Yes
Degree of protection (IP) : IP20
