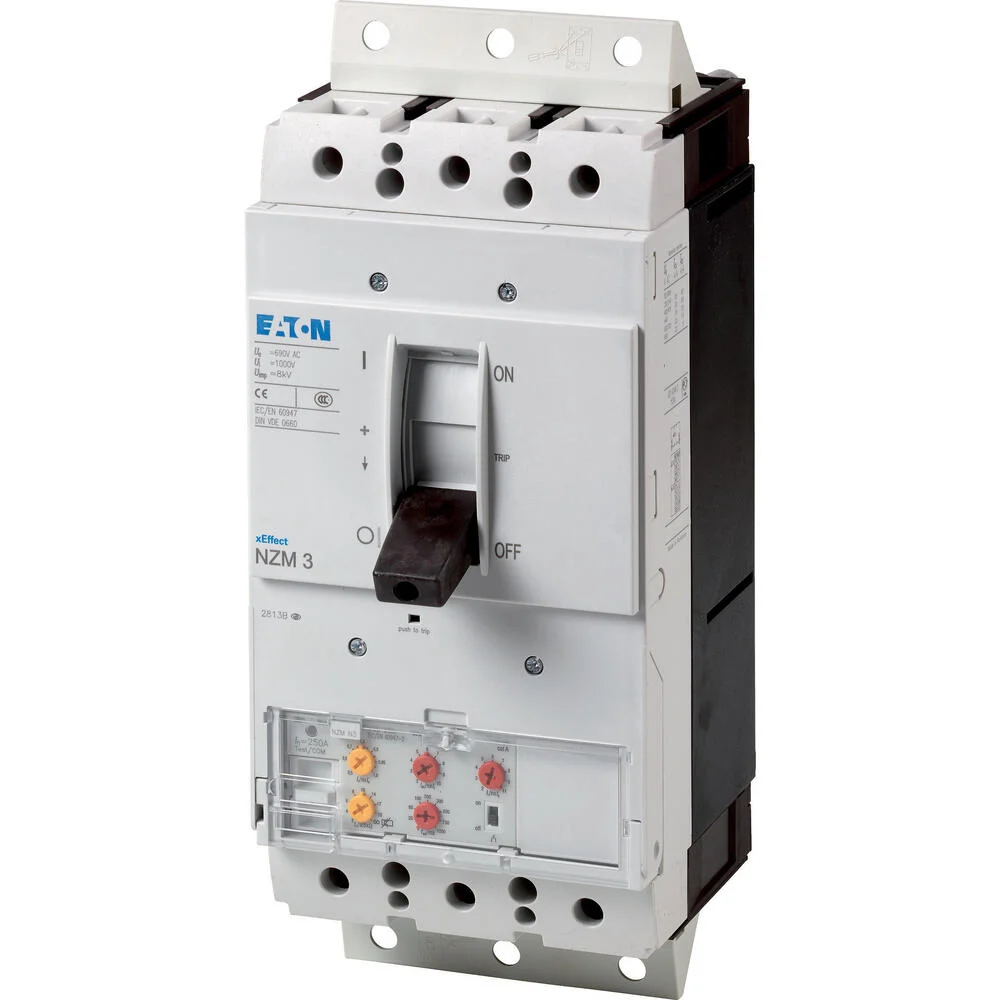

The Eaton Industries MCCB (Molded Case Circuit Breaker) is part of the NZM series of circuit breakers. In just four compact sizes, these MCCBs cover all application cases, delivering flexibility and compatibility with the IEC market. The series is specifically designed for flexible installation through the use of modular function groups, accommodating a variety of setups and usage scenarios.
Specifications
Rated permanent current Iu (A) : 400
Rated voltage (V) : 690 V to 690 V
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz (kA) : 150
Overload release current setting (A) : 200 A to 400 A
Adjustment range short-term delayed short-circuit release (A) : 400 A to 4000 A
Adjustment range undelayed short-circuit release (A) : 800 A to 4400 A
Integrated earth fault protection : No
Type of electrical connection of main circuit : Screw connection
Device construction : Built-in device plug-in technique
Suitable for DIN rail (top hat rail) mounting : No
DIN rail (top hat rail) mounting optional : No
Number of auxiliary contacts as normally closed contact : 0
Number of auxiliary contacts as normally open contact : 0
Number of auxiliary contacts as change-over contact : 0
With switched-off indicator : No
With integrated under voltage release : No
Number of poles : 3
Position of connection for main current circuit : Front side
Type of control element : Rocker lever
Complete device with protection unit : Yes
Motor drive integrated : No
Motor drive optional : Yes
Degree of protection (IP) : IP20
