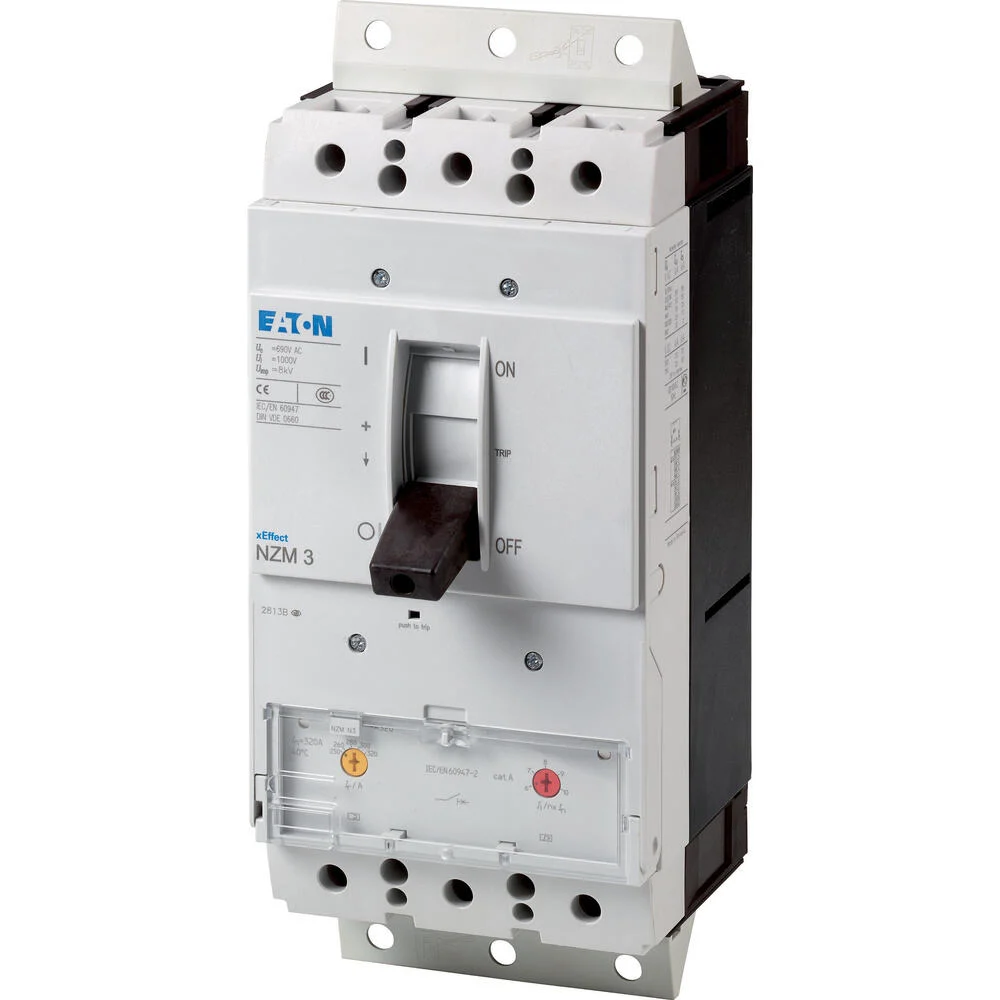

Eaton NZM3 3P 320A 150KA Circuit Breaker Withdrawable Unit – 168913

The Eaton Industries MCCB power switch has a rated continuous current Iu of 320A, a rated voltage of 690V, and a rated switching capacity Icu at 400 150kA. It features an overload protection adjustment range of 250 – 320A and an instantaneous short circuit setting range of 1920 – 3200A. This built-in device insert is part of the NZM series that offers flexible installation due to its modular functional groups. With its four compact sizes, it is suitable for all application types in the IEC market.

Specifications

Rated permanent current Iu (A) : 320
Rated voltage (V) : 690 V to 690 V
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz (kA) : 150
Overload release current setting (A) : 250 A to 320 A
Adjustment range short-term delayed short-circuit release (A) : 0 A to 0 A
Adjustment range undelayed short-circuit release (A) : 1920 A to 3200 A
Integrated earth fault protection : No
Type of electrical connection of main circuit : Screw connection
Device construction : Built-in device plug-in technique
Suitable for DIN rail (top hat rail) mounting : No
DIN rail (top hat rail) mounting optional : No
Number of auxiliary contacts as normally closed contact : 0
Number of auxiliary contacts as normally open contact : 0
Number of auxiliary contacts as change-over contact : 0
With switched-off indicator : No
With integrated under voltage release : No
Number of poles : 3
Position of connection for main current circuit : Front side
Type of control element : Rocker lever
Complete device with protection unit : Yes
Motor drive integrated : No
Motor drive optional : Yes
Degree of protection (IP) : IP20
