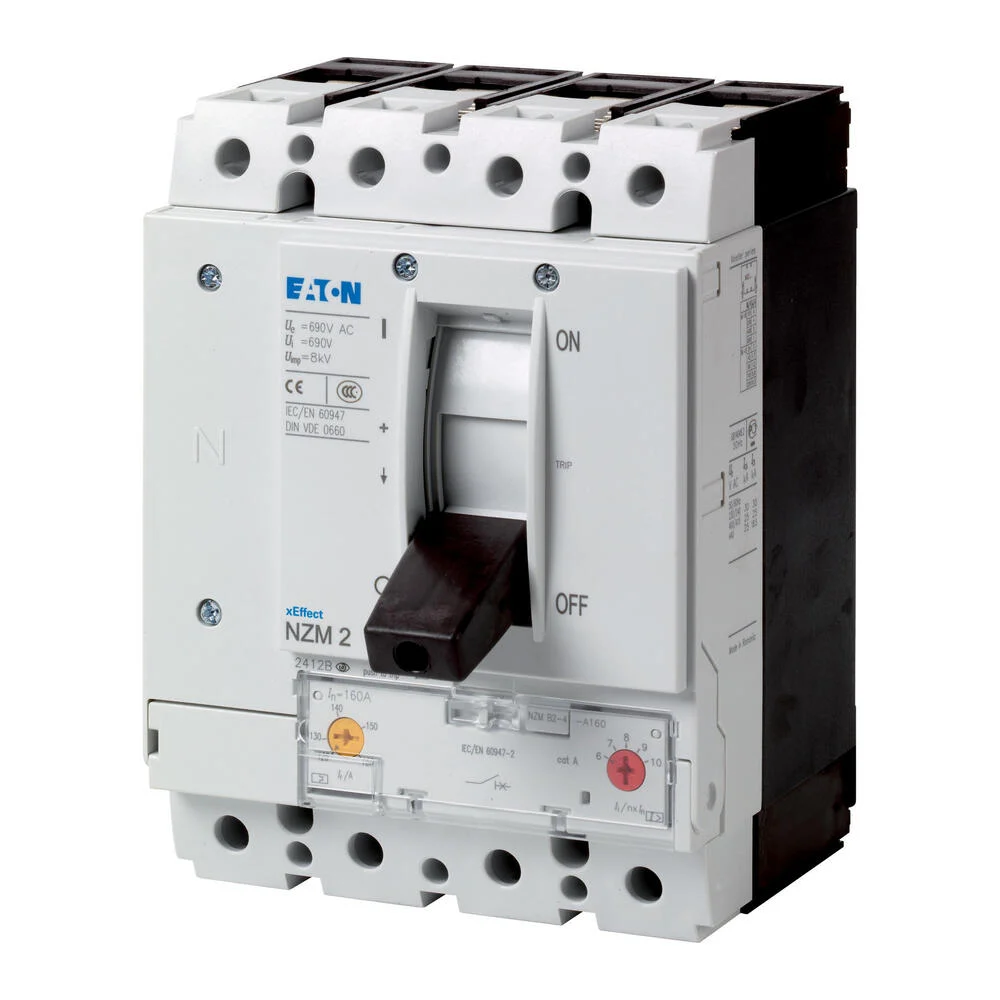

The Eaton Industries MCCB power switch is a 4-pole Circuit-breaker NZM2, with a rated current of 300A, signifying it can hold an uninterrupted current of 300A. It has a rated voltage of 690V and has a nominal breaking capacity Icu at 400V, 36kA. It has an adjustable overload protection ranging from 240 – 300A and an un-delayed short circuit adjustable range from 5 – 8.3A. This device comes in a fixed installation type and offers a screw connection. With IEC standard approval, it provides protection for both systems and cables.
Specifications
Rated permanent current Iu (A) : 300
Rated voltage (V) : 690 V to 690 V
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz (kA) : 36
Overload release current setting (A) : 240 A to 300 A
Adjustment range short-term delayed short-circuit release (A) : 0 A to 0 A
Adjustment range undelayed short-circuit release (A) : 5 A to 8.3 A
Integrated earth fault protection : No
Type of electrical connection of main circuit : Screw connection
Device construction : Built-in device fixed built-in technique
Suitable for DIN rail (top hat rail) mounting : No
DIN rail (top hat rail) mounting optional : Yes
Number of auxiliary contacts as normally closed contact : 0
Number of auxiliary contacts as normally open contact : 0
Number of auxiliary contacts as change-over contact : 0
With switched-off indicator : No
With integrated under voltage release : No
Number of poles : 4
Position of connection for main current circuit : Front side
Type of control element : Rocker lever
Complete device with protection unit : Yes
Motor drive integrated : No
Motor drive optional : Yes
Degree of protection (IP) : IP20
