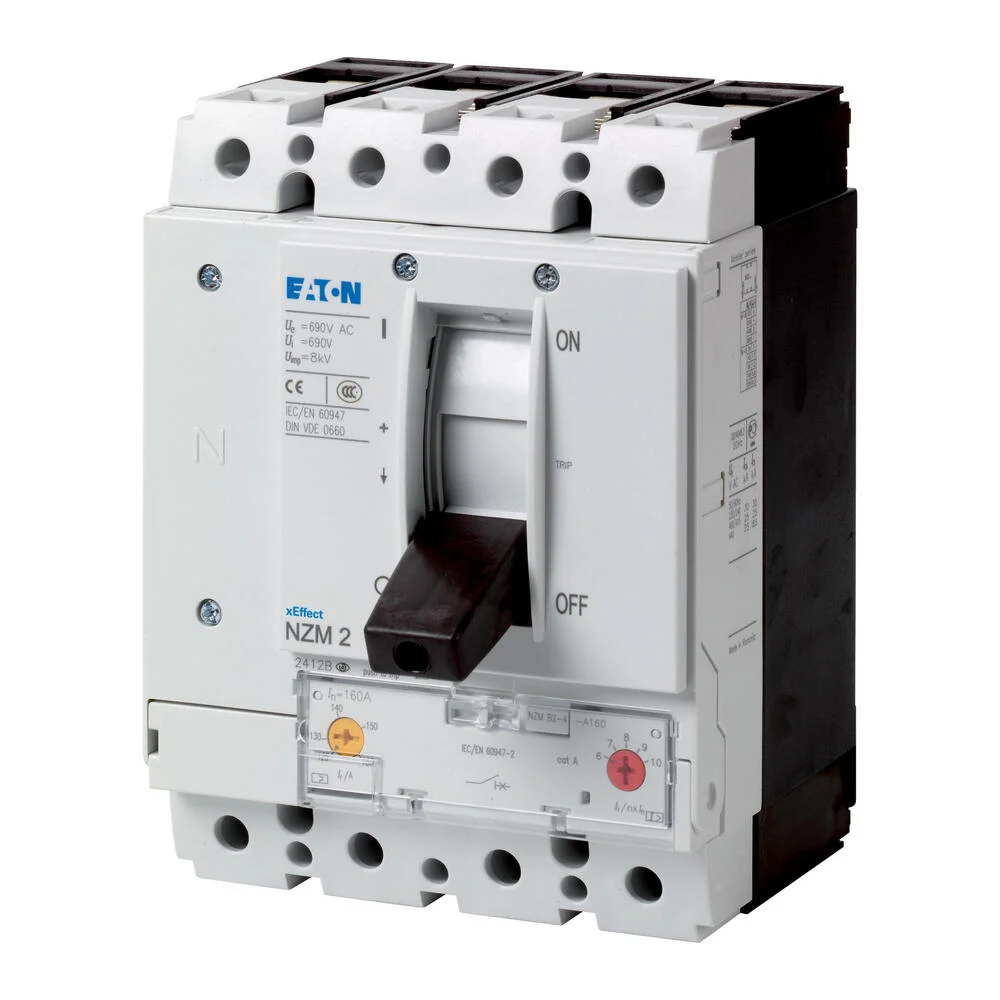

The Eaton Industries MCCB power circuit breaker has a rated continuous current (Iu) of 300A with a nominal voltage of 440V. It offers a rated breaking capacity (Icu) of 25kA at 400V. The overload protection setting range is 240-300A, and the instantaneous short circuit setting range is 5-8.3A. This device is designed as a fixed built-in device and is connected via screw. It adheres to the IEC standard and primarily serves to protect both the system and its cables.
Specifications
Rated permanent current Iu (A) : 300
Rated voltage (V) : 440 V to 440 V
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz (kA) : 25
Overload release current setting (A) : 240 A to 300 A
Adjustment range short-term delayed short-circuit release (A) : 0 A to 0 A
Adjustment range undelayed short-circuit release (A) : 5 A to 8.3 A
Integrated earth fault protection : No
Type of electrical connection of main circuit : Screw connection
Device construction : Built-in device fixed built-in technique
Suitable for DIN rail (top hat rail) mounting : No
DIN rail (top hat rail) mounting optional : Yes
Number of auxiliary contacts as normally closed contact : 0
Number of auxiliary contacts as normally open contact : 0
Number of auxiliary contacts as change-over contact : 0
With switched-off indicator : No
With integrated under voltage release : No
Number of poles : 4
Position of connection for main current circuit : Front side
Type of control element : Rocker lever
Complete device with protection unit : Yes
Motor drive integrated : No
Motor drive optional : Yes
Degree of protection (IP) : IP20
