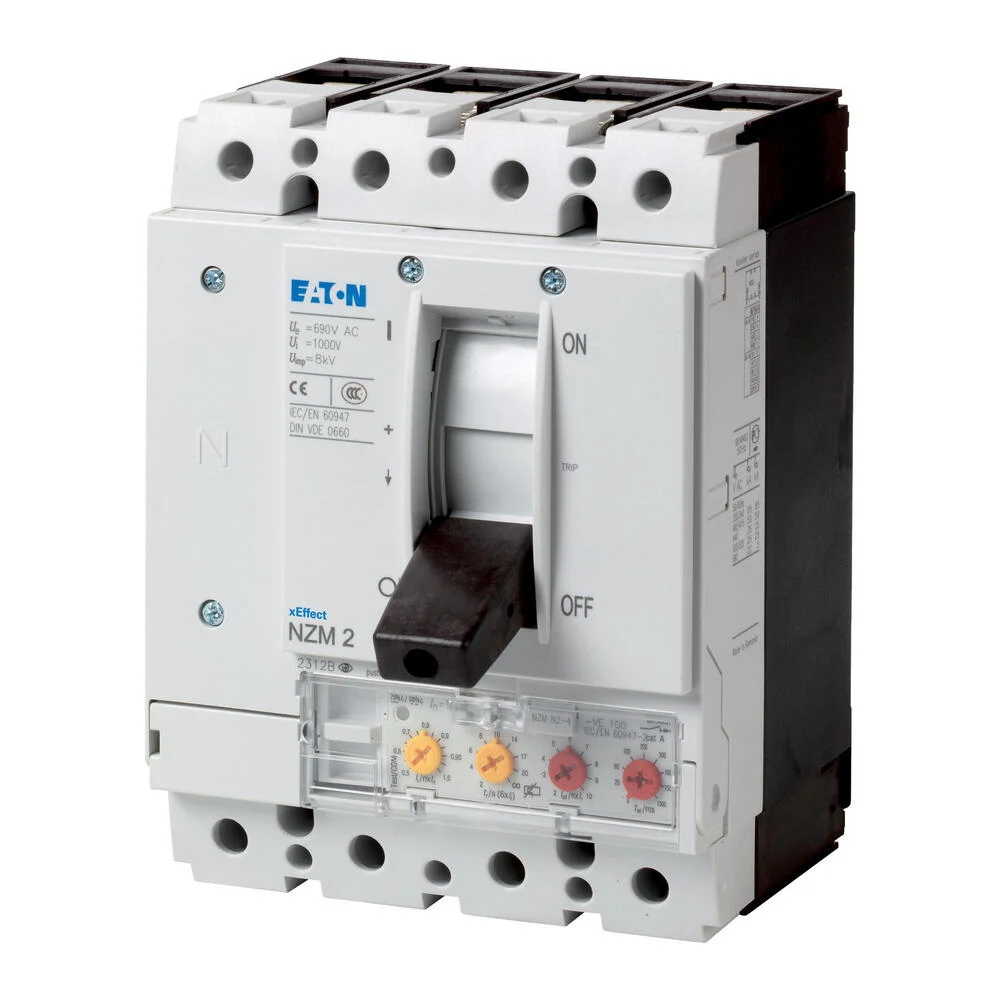

The Eaton Industries NZMN VE circuit-breaker is a 4 pole device with a rated current, also known as rated uninterrupted current (In = Iu), of 250A. It has a switching capacity of 400/415 V at 50 Hz with a rated short-circuit breaking capacity (Icu) of 50kA. The overload protection setting range is 125 – 250A, with a delayed short circuit setting range from 250 – 2500A and an instantaneous short circuit setting of 3000A. It is designed for fixed installation and features a screw connection. The circuit-breaker meets the IEC standard and provides protective functions for systems, cables, selectivity, and generator protection.
Specifications
Rated permanent current Iu (A) : 250
Rated voltage (V) : 690 V to 690 V
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz (kA) : 50
Overload release current setting (A) : 125 A to 250 A
Adjustment range short-term delayed short-circuit release (A) : 250 A to 2500 A
Adjustment range undelayed short-circuit release (A) : 3000 A to 3000 A
Integrated earth fault protection : No
Type of electrical connection of main circuit : Screw connection
Device construction : Built-in device fixed built-in technique
Suitable for DIN rail (top hat rail) mounting : No
DIN rail (top hat rail) mounting optional : Yes
Number of auxiliary contacts as normally closed contact : 0
Number of auxiliary contacts as normally open contact : 0
Number of auxiliary contacts as change-over contact : 0
With switched-off indicator : No
With integrated under voltage release : No
Number of poles : 4
Position of connection for main current circuit : Front side
Type of control element : Rocker lever
Complete device with protection unit : Yes
Motor drive integrated : No
Motor drive optional : Yes
Degree of protection (IP) : IP20
