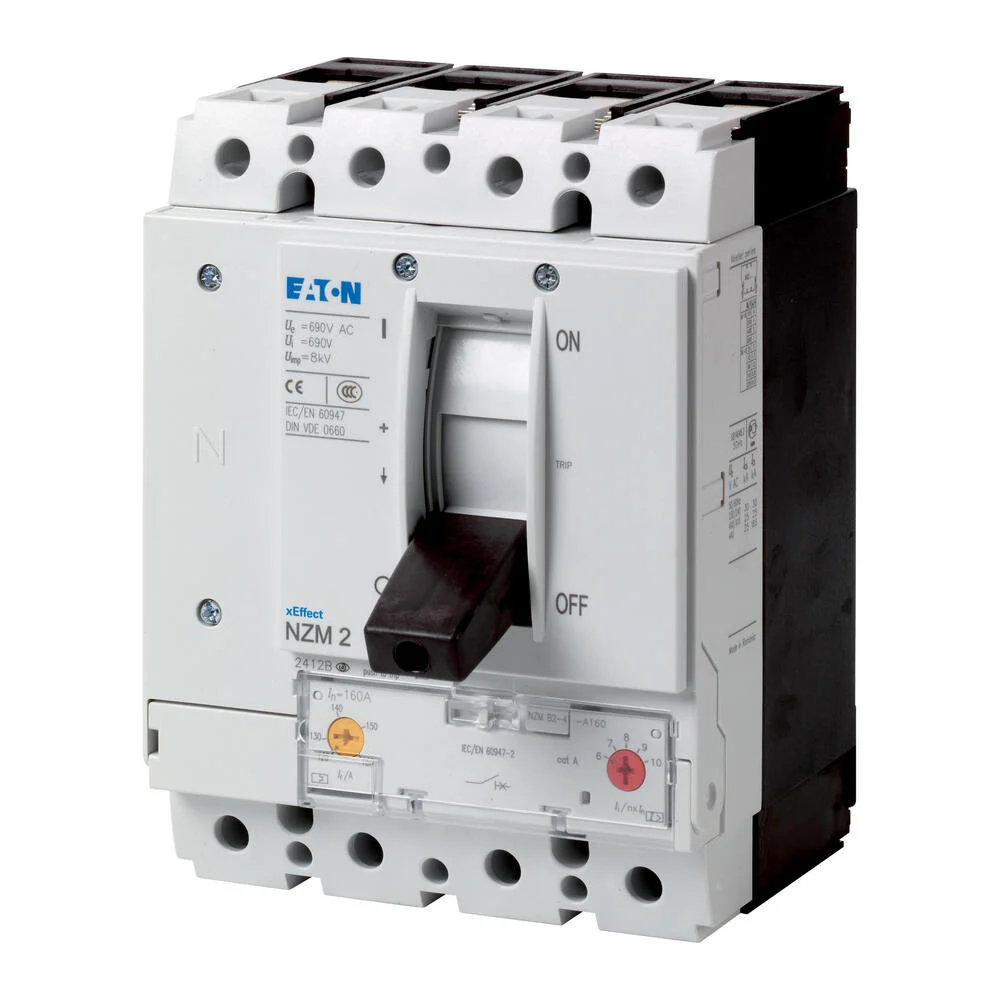

The Eaton Industries MCCB power switch has a rated continuous current Iu of 225A and rated voltage of 440V. It features a rated cut-off capability Icu at 400 of 25kA, and an overload protection setting range of 225A. It also includes a short-delayed setting range of 1500 – 2500A, and an instantaneous short circuit setting range of 6 – 10A. Complemented by the NZM..-AF..NA circuit-breakers, it can be applied universally with just four compact sizes. It provides flexibility due to its modular function groups and offers thermomagnetic releases for systems and cable protection, as well as fixed overload releases. This switch is in compliance with UL/CSA and IEC regulations, as indicated on the rating plate, which also bears the IEC switching performance values.
Specifications
Rated permanent current Iu (A) : 225
Rated voltage (V) : 440 V to 440 V
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz (kA) : 25
Overload release current setting (A) : 225 A to 225 A
Adjustment range short-term delayed short-circuit release (A) : 1500 A to 2500 A
Adjustment range undelayed short-circuit release (A) : 6 A to 10 A
Integrated earth fault protection : No
Type of electrical connection of main circuit : Frame clamp
Device construction : Built-in device fixed built-in technique
Suitable for DIN rail (top hat rail) mounting : No
DIN rail (top hat rail) mounting optional : Yes
Number of auxiliary contacts as normally closed contact : 0
Number of auxiliary contacts as normally open contact : 0
Number of auxiliary contacts as change-over contact : 0
With switched-off indicator : No
With integrated under voltage release : No
Number of poles : 4
Position of connection for main current circuit : Front side
Type of control element : Rocker lever
Complete device with protection unit : Yes
Motor drive integrated : No
Motor drive optional : Yes
Degree of protection (IP) : IP20
