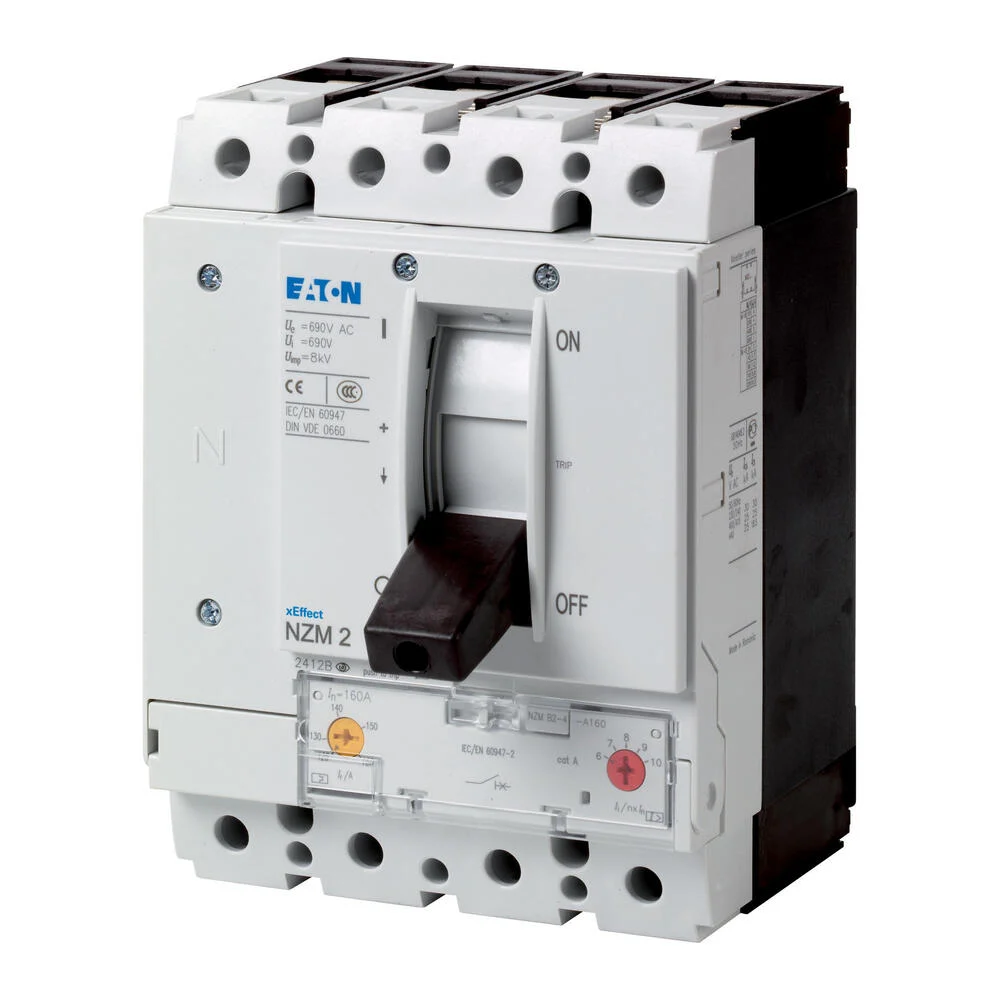

The Eaton Industries MCCB Circuit-breaker NZM2 is a 4-pole device with a rated current of 200A. It operates at a nominal voltage of 690V with a nominal tripping capacity (Icu) at 400 150kA. Its protective features include overload protection set at 200A and short-delay range between 1200 – 2000A. It also has non-delayed short circuit range between 6 – 10A. The switching capacities are 150 kA at 480Y/277 V 60 Hz, 50 kA at 600Y/347 V 60 Hz, and 100 kA at 480 V 60 Hz. It adheres to UL/CSA and IEC standards and is designed to be installed as a fixed, box terminal type unit. Its main function is for system and cable protection.
Specifications
Rated permanent current Iu (A) : 200
Rated voltage (V) : 690 V to 690 V
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz (kA) : 150
Overload release current setting (A) : 200 A to 200 A
Adjustment range short-term delayed short-circuit release (A) : 1200 A to 2000 A
Adjustment range undelayed short-circuit release (A) : 6 A to 10 A
Integrated earth fault protection : No
Type of electrical connection of main circuit : Frame clamp
Device construction : Built-in device fixed built-in technique
Suitable for DIN rail (top hat rail) mounting : No
DIN rail (top hat rail) mounting optional : Yes
Number of auxiliary contacts as normally closed contact : 0
Number of auxiliary contacts as normally open contact : 0
Number of auxiliary contacts as change-over contact : 0
With switched-off indicator : No
With integrated under voltage release : No
Number of poles : 4
Position of connection for main current circuit : Front side
Type of control element : Rocker lever
Complete device with protection unit : Yes
Motor drive integrated : No
Motor drive optional : Yes
Degree of protection (IP) : IP20
