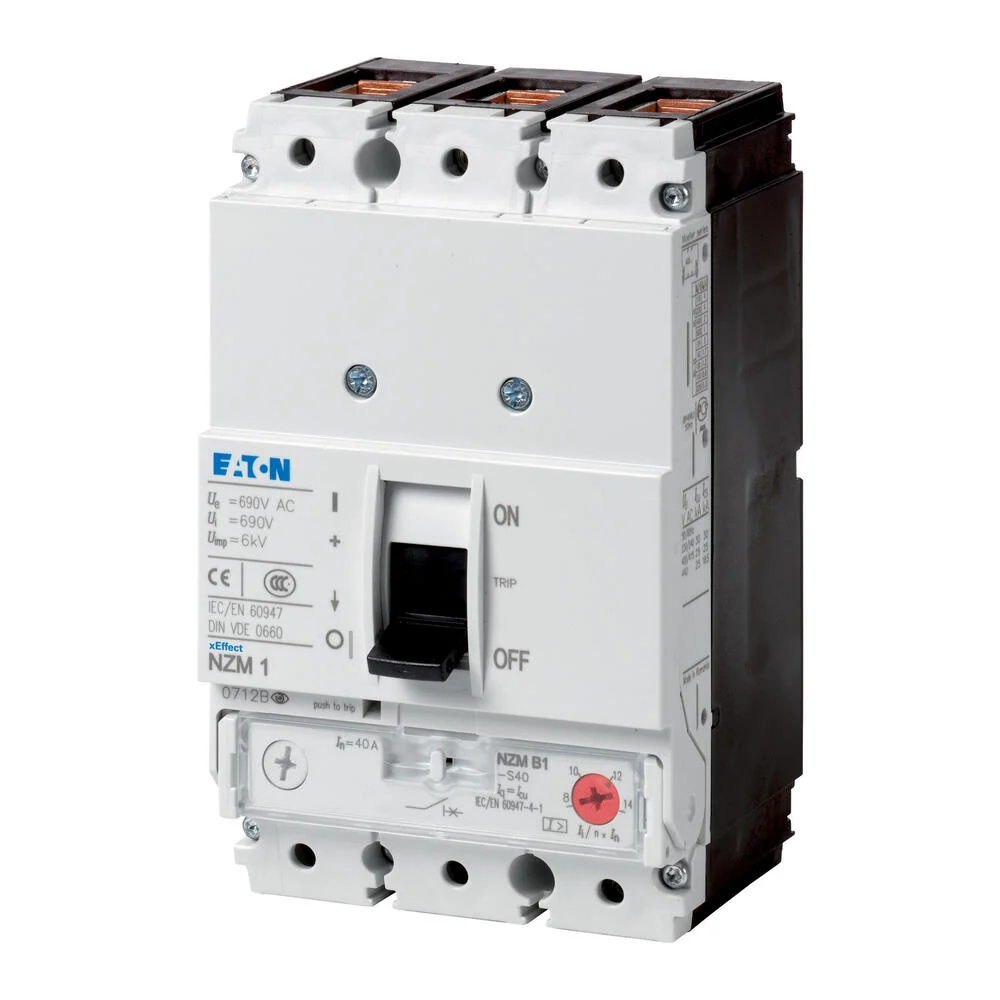

Eaton NZM1 Circuit Breaker 3P 2A 50KA UL IEC Certified – 103026

The Eaton Industries MCCB motor protection switch comes in a compact size of 90x88x165.5mm, and it is designed for inbuilt fixed installation. The nominal continuous current is 2A, and the main circuit connection method is magnetic. The device’s degree of protection is IP20 and it operates at a voltage of 690V. The NZM..-S..CNA series circuit-breakers are compatible with four compact sizes and allow flexible mounting due to their modular function groups. They come with a magnetic short-circuit release in connection with an overload relay. Also, these switches are equipped with short-circuit release without overload trip. They conform to UL/CSA as well as IEC regulations, and the rating plate contains IEC switching performance values.

Specifications

Overload release current setting (A) : 0 A to 0 A
Adjustment range undelayed short-circuit release (A) : 12 A to 22 A
With thermal protection : No
Phase failure sensitive : No
Switch off technique : Magnetic
Rated operating voltage (V) : 690 V to 690 V
Rated permanent current Iu (A) : 2
Rated operation power at AC-3, 230 V (kW) : 0.37
Rated operation power at AC-3, 400 V (kW) : 0.75
Type of electrical connection of main circuit : Other
Type of control element : Rocker lever
Device construction : Built-in device fixed built-in technique
With integrated auxiliary switch : No
With integrated under voltage release : No
Number of poles : 3
Rated short-circuit breaking capacity lcu at 400 V, AC (kA) : 50
Degree of protection (IP) : IP20
Height (mm) : 165.5
Width (mm) : 90
Depth (mm) : 88
