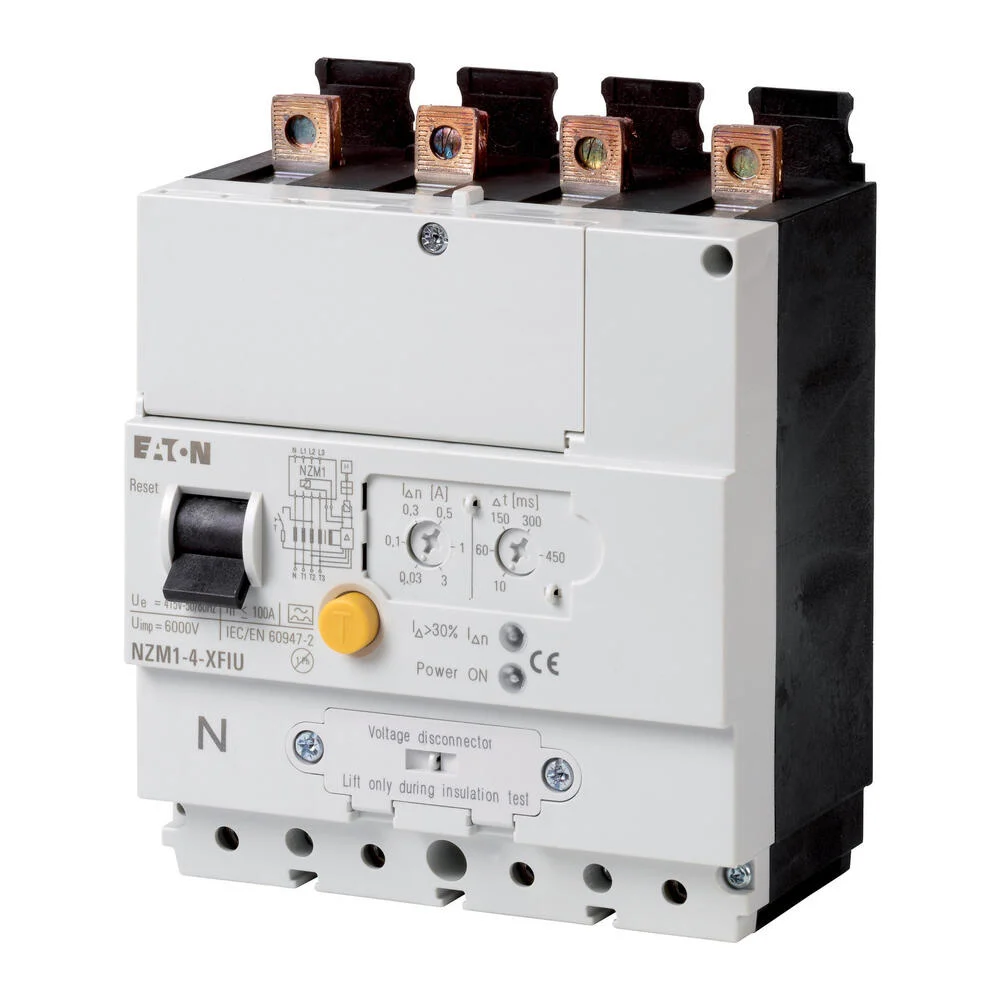

The Eaton Industries MCCB leakage current relay is an optional accessory for NZM series circuit-breakers. It offers global application options due to flexible and uncomplicated mounting provided by its modular function groups. The relay is approved under IEC/EN 60947-2 standards and suitable for use in three and single-phase systems. It has a voltage range of 200 to 415 V, operates on a pulse current sensitivity following the core-balance principle, and has a fixed delay time set at 10 ms. The relay also provides a warning when current exceeds 30% of its set point via a yellow LED and allows users to install up to two auxiliary contacts. It cannot be used in conjunction with an insulated enclosure, main switch assembly kit, or lower cover.
Specifications
Rated control supply voltage Us at AC 50HZ (V) : 200 V to 415 V
Rated control supply voltage Us at AC 60HZ (V) : 200 V to 415 V
Rated control supply voltage Us at DC (V) : 0 V to 0 V
Rated fault current (A) : 0.03 A to 3 A
Max. power on-delay time (ms) : 30
Delay adjustable : Yes
Max. rated operation voltage Ue (V) : 415
