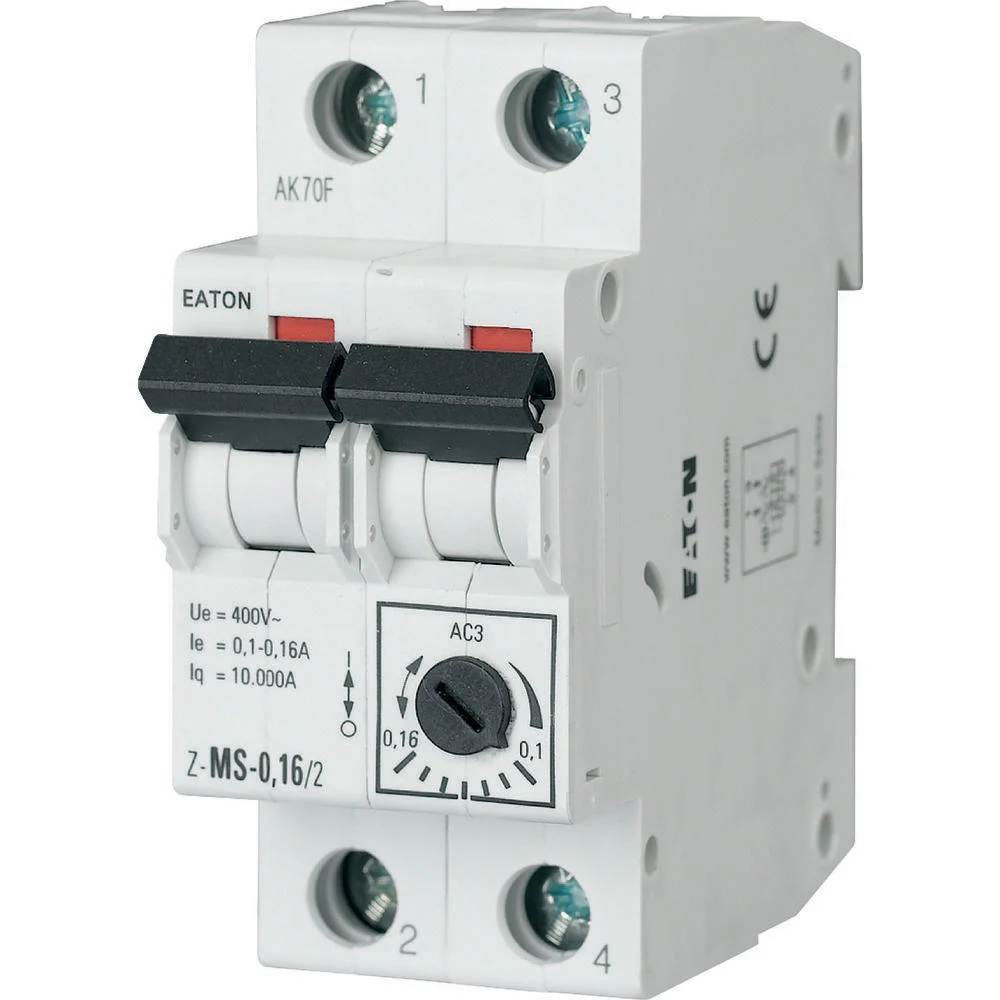

The Eaton Industries Xpole motor-protective circuit-breaker is designed to guard three-phase motors with outputs up to 15 kW (380/400 V), or other loads with currents up to 40 A. It features a thermal overload release and magnetic short-circuit release for protection and switching. This circuit-breaker can also serve as a main switch, with isolating characteristics compliant with IEC/EN 60947. It includes a contact position display with a clear red/green indicator.
Specifications
Overload release current setting (A) : 0.1 A to 0.16 A
Adjustment range undelayed short-circuit release (A) : 1.3 A to 1.7 A
With thermal protection : Yes
Phase failure sensitive : No
Switch off technique : Magnetic
Rated operating voltage (V) : 400 V to 400 V
Rated permanent current Iu (A) : 0.16
Rated operation power at AC-3, 230 V (kW) : 0
Rated operation power at AC-3, 400 V (kW) : 0.06
Type of electrical connection of main circuit : Screw connection
Type of control element : Rocker lever
Device construction : Complete device in housing
With integrated auxiliary switch : No
With integrated under voltage release : No
Number of poles : 2
Rated short-circuit breaking capacity lcu at 400 V, AC (kA) : 10
Degree of protection (IP) : IP20
Height (mm) : 75
Width (mm) : 36
Depth (mm) : 80
