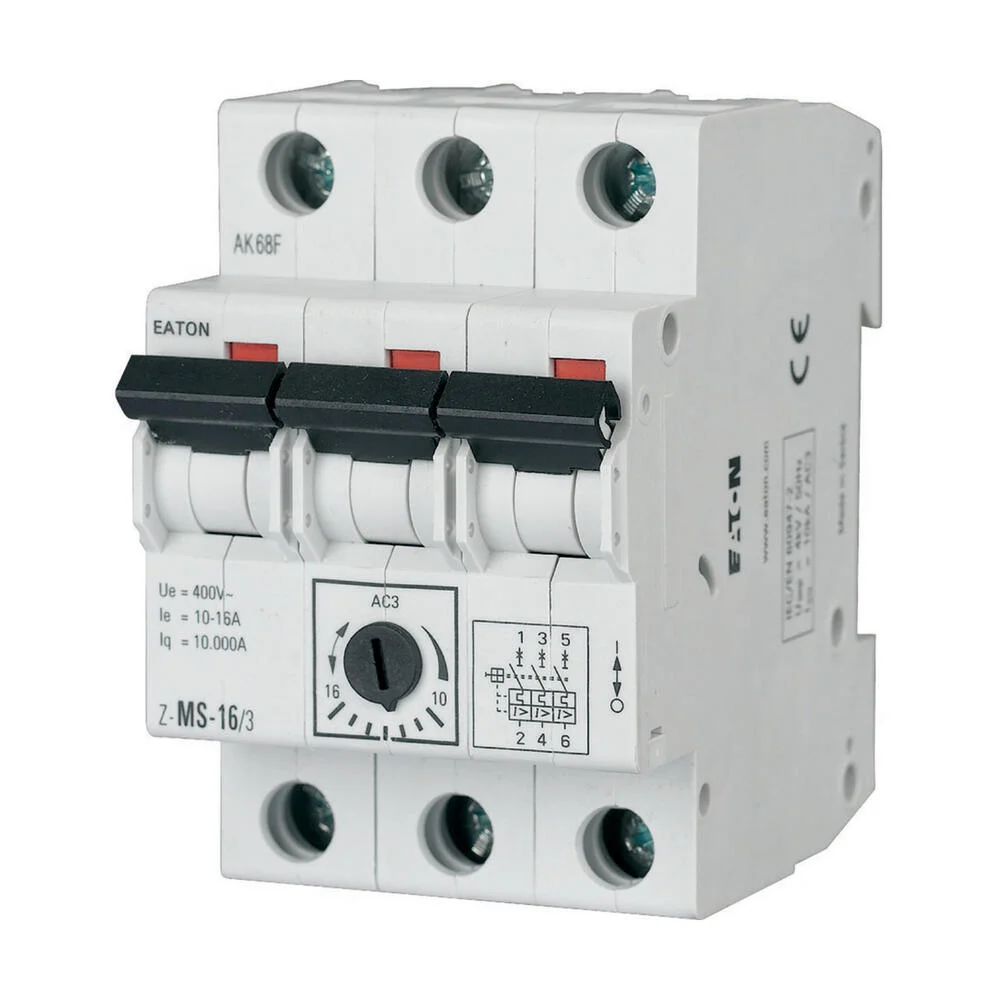

The Eaton Industries Xpole motor-protective circuit-breaker features a thermal overload release and a magnetic short-circuit release. It’s designed for switching and protection of three-phase motors with outputs of up to 15 kW (380/400 V) or other loads with currents up to 40 A. Additionally, it can function as a main switch with isolating characteristics as per IEC/EN 60947 standards. It also has a contact position display that shows red for closed and green for open.
Specifications
Overload release current setting (A) : 0.16 A to 0.25 A
Adjustment range undelayed short-circuit release (A) : 2 A to 2.6 A
With thermal protection : Yes
Phase failure sensitive : No
Switch off technique : Magnetic
Rated operating voltage (V) : 400 V to 400 V
Rated permanent current Iu (A) : 0.25
Rated operation power at AC-3, 230 V (kW) : 0
Rated operation power at AC-3, 400 V (kW) : 0.06
Type of electrical connection of main circuit : Screw connection
Type of control element : Rocker lever
Device construction : Complete device in housing
With integrated auxiliary switch : No
With integrated under voltage release : No
Number of poles : 3
Rated short-circuit breaking capacity lcu at 400 V, AC (kA) : 10
Degree of protection (IP) : IP20
Height (mm) : 75
Width (mm) : 54
Depth (mm) : 80
