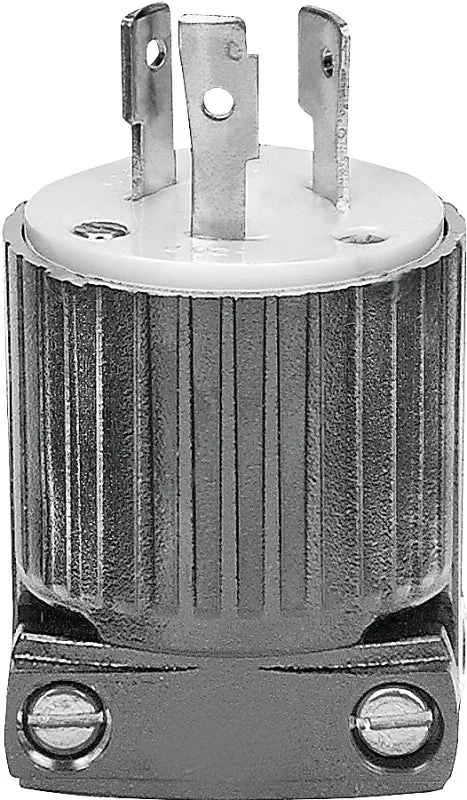

Abuse-resistant thermoplastic construction. External cable clamp provides firm strain relief. Back wire terminal clamps for easy secure wiring. Triple combination head screws standard – Slot/Phillips/Robertson for use in the US and Canada. 1/4 to 11/16 in cord Dia.
Unit: EA
UPC: 032664391200
Model Number: L620P
Features
- Abuse-resistant thermoplastic construction
- Back wire dead-front design
- External cable clamp provides firm strain relief
- Back wire terminal-clamps for easy secure wiring
- Triple combination head screws standard – Slot/Phillips/Robertson for use in the USA and Canada
- Clear cover over wiring compartments allow easy inspection of wiring terminations
- Individual wiring compartments with tapered channel for easy insertion of wires
Additional Information
- Cable/Wire Size: 1/4 to 11/16
- Color: Black/White
- Current Rating: 20
- Dimensions: 2.23 in L x 1.82 in W
- Grounding Type: Grounded
- Material: Thermoplastic
- NEMA Configuration: NEMA L6-20
- Number of Poles: 2
- Number Of Wires: 3
- Operating Temperature: -20 to 60
- Type: Locking
- Voltage Rating: 250
