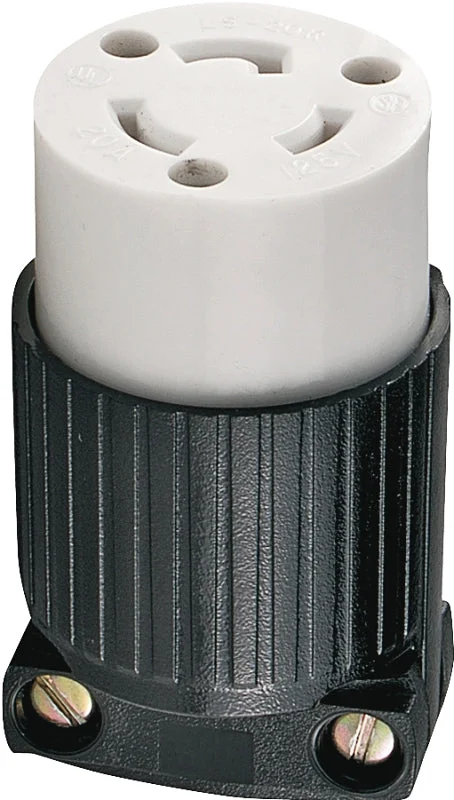

Abuse-resistant thermoplastic construction. External cable clamp provides firm strain relief. Back wire terminal clamps for easy secure wiring. Triple combination head screws standard – Slot/Phillips/Robertson for use in the US and Canada. 1/4 to 11/16 in cord Dia.
Unit: EA
UPC: 032664391101
Model Number: L520C
Features
- Abuse-resistant thermoplastic construction
- Back wire dead-front design
- External cable clamp provides firm strain relief
- Back wire terminal-clamps for easy secure wiring
- Individual wiring compartments with tapered channel for easy insertion of wires
- Clear cover over wiring compartments allow easy inspection of wiring terminations
- Clearly marked rating, NEMA configuration and standard compliances on face of plug or connector
Additional Information
- Cable/Wire Size: 1/4 to 11/16
- Color: Black/White
- Current Rating: 20
- Dimensions: 3.44 in L x 2.12 in W x 1.31 in D
- Grounding Type: Grounded
- Material: Nylon
- NEMA Configuration: NEMA L5-20
- Number of Poles: 2
- Number Of Wires: 3
- Operating Temperature: -20 to 60
- Type: Locking Polarized
- Voltage Rating: 125
