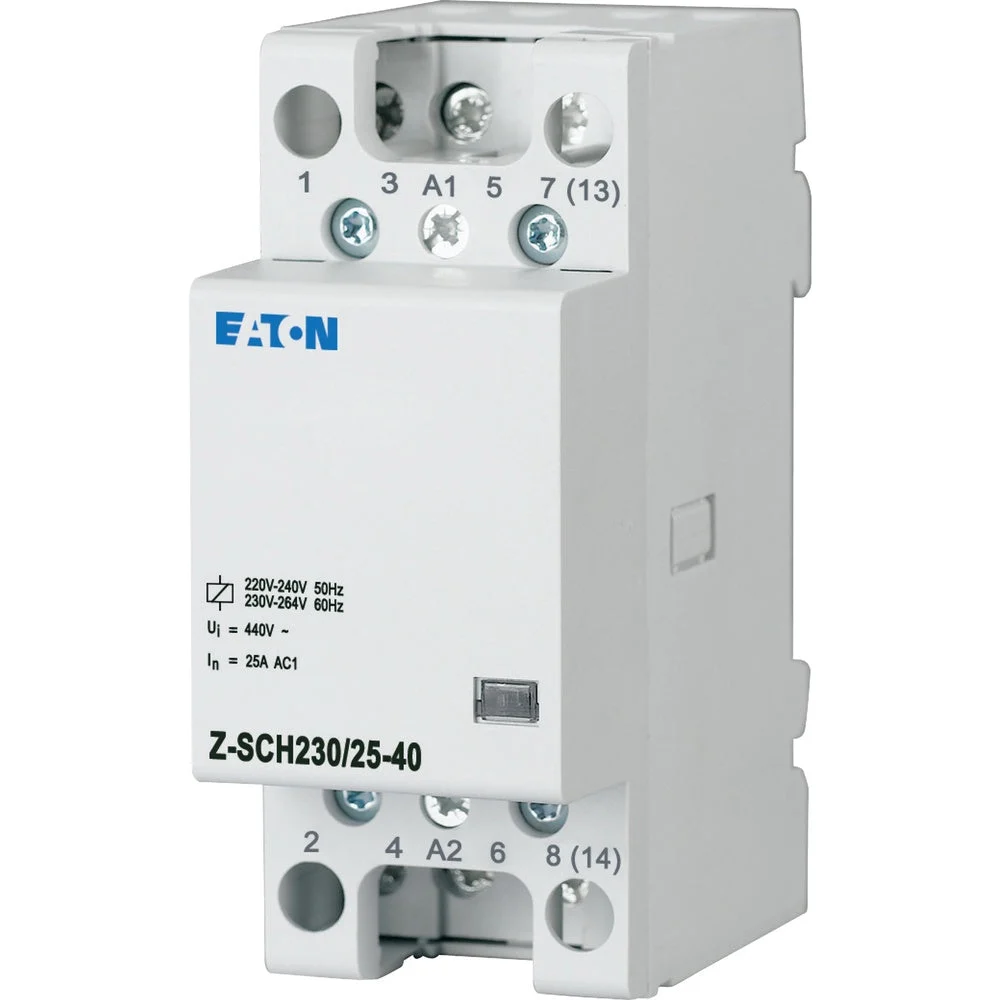

Eaton Installation Relay 230VAC 50Hz 25A 4NO 2HP – 248847

The Eaton Industries Z SCH modular installation contactor operates at a control circuit voltage of 230V AC with a nominal current of 25A. It has a voltage range of 195.5 – 253V and the type of operating voltage and energizing voltage are AC. The device comes with 4 N/O make contacts, a maximum incandescent lamp load of 3000W, and conforms to IEC 61095, EN 61095, VDE 0660, IEC 60947-4-1_x, EN 60947-4-1, and VDE standards. It features a standard front dimension of 45mm and a mounting width of 2 SU (35mm) for top-hat rail mounting.

Specifications

Rated operating voltage (V) : 440 V to 440 V
Rated operation current (A) : 25
Utility category : 1
Rated excitation voltage (V) : 195.5 V to 253 V
Voltage type (operating voltage) : AC
Voltage type (excitation voltage) : AC
Number of contacts as normally open contact : 4
Number of contacts as normally closed contact : 0
Max. incandescent lamp load (W) : 3000
Max. load fluorescent lamp (VA) : 1160
Max. load fluorescent lamp (Duo circuit) (VA) : 2552
Max. load fluorescent lamp (parallel compensated) (VA) : 1044
Slider for hand switch : No
Width in number of modular spacings : 2
Built-in depth (mm) : 60
Additional equipment possible : Yes
With day/night function : No
Hum-free : No
Degree of protection (IP) : IP40
