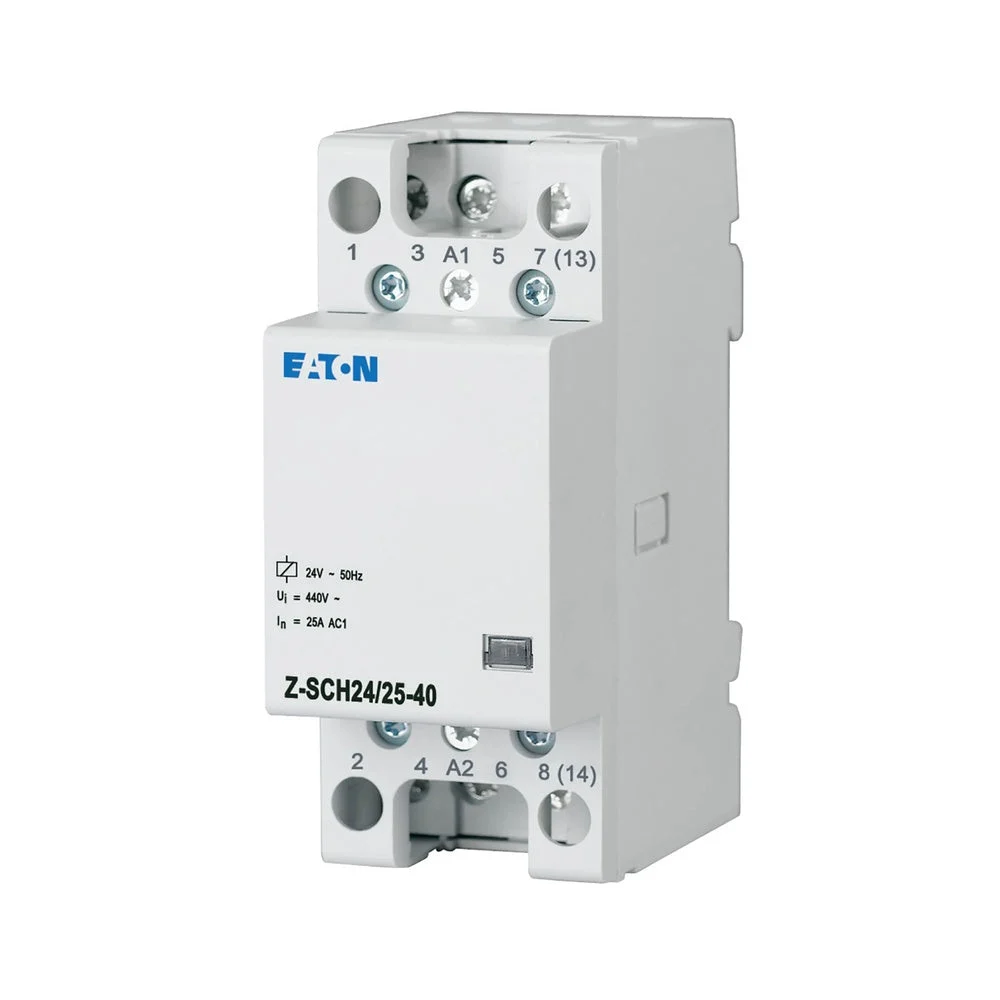

Eaton Installation Contactor 24VAC 50Hz 25A 4NO 2HP Z-SCH24/25-40 – 248851

The Eaton Industries Z SCH installation auxiliary switch is a modular device with a rated operational voltage of 440V and nominal operating current of 25A. It has an activation voltage range of 20.4 – 26.4V, AC type for both operating and activation voltage, and 4 make contacts. Its maximum incandescent load capacity is 3000W. Depicting the complete installation contactor features a rated control circuit voltage of 24V AC and operational current at AC1 25A with 4 N/O function. It is compliant with IEC 61095, EN 61095, VDE 0660, IEC 60947-4-1_x, EN 60947-4-1, VDE standards, and has a standard front dimension of 45mm, designed to fit a top-hat rail mounting with a mounting width of 2 SU (35mm).

Specifications

Rated operating voltage (V) : 440 V to 440 V
Rated operation current (A) : 25
Utility category : 1
Rated excitation voltage (V) : 20.4 V to 26.4 V
Voltage type (operating voltage) : AC
Voltage type (excitation voltage) : AC
Number of contacts as normally open contact : 4
Number of contacts as normally closed contact : 0
Max. incandescent lamp load (W) : 3000
Max. load fluorescent lamp (VA) : 1160
Max. load fluorescent lamp (Duo circuit) (VA) : 2552
Max. load fluorescent lamp (parallel compensated) (VA) : 1044
Slider for hand switch : No
Width in number of modular spacings : 2
Built-in depth (mm) : 60
Additional equipment possible : Yes
With day/night function : No
Hum-free : No
Degree of protection (IP) : IP40
