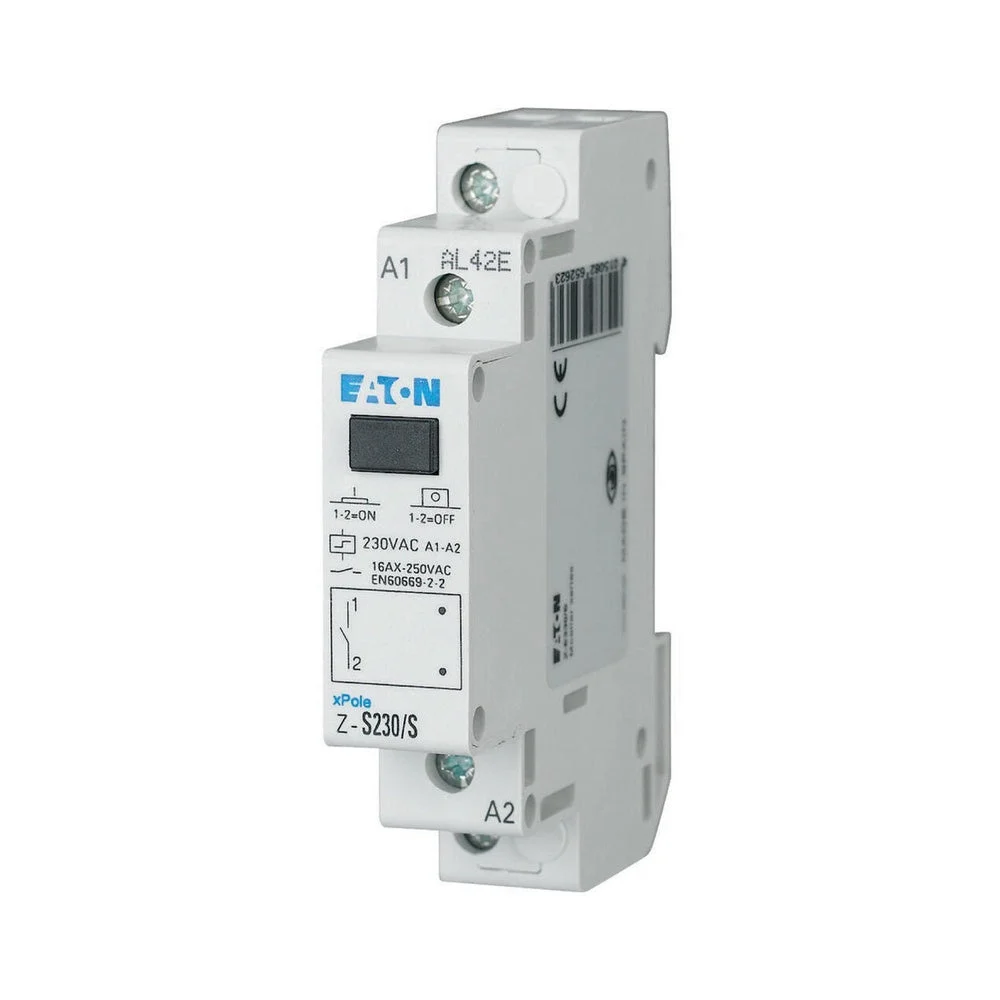

EATON INDUSTRIES Z Bistable Relay – 265262

This impulse relay from Eaton Moeller’s Z-S series features 1 make contact. Furthermore, the bistable relay has a coil voltage of 230V.

Specifications

Function : Mechanical switch
Mounting method : DIN rail
Width in number of modular spacings : 1
Built-in depth (mm) : 60
Number of contacts as normally open contact : 1
Number of contacts as normally closed contact : 0
Number of contacts as change-over contact : 0
Control voltage 1 (V) : 230 V to 230 V
Type of control voltage 1 : AC
Frequency control voltage 1 (Hz) : 50 Hz to 50 Hz
Control voltage 2 (V) : 0 V to 0 V
Type of control voltage 2 : AC
Frequency control voltage 2 (Hz) : 0 Hz to 0 Hz
Rated switch current (A) : 16
Supply voltage (V) : 24 V to 250 V
Voltage type of supply voltage : AC
Max. incandescent lamp load (W) : 1980
Max. load fluorescent lamp (VA) : 1020
Max. load fluorescent lamp (Duo circuit) (VA) : 1820
Max. load fluorescent lamp (parallel compensated) (VA) : 1105
Max. switching current (cos phi = 0.6) (A) : 24
Manual override : Yes
