EATON INDUSTRIES XV Graphic Panel – 142533

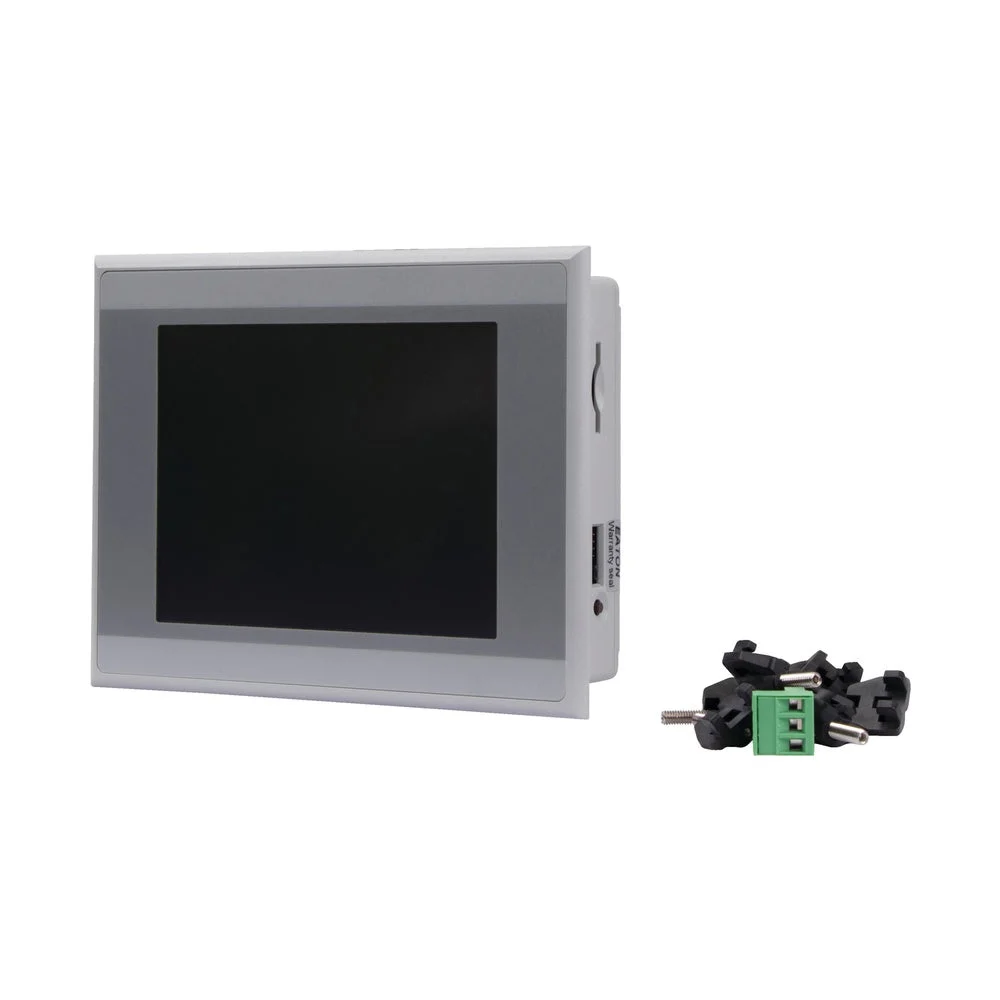

Eaton XV-102 Touch panel, 24 V DC, 5.7z, TFTcolor, ethernet, RS232, RS485, CAN, PLC.

Specifications

Supply voltage AC 50 Hz (V) : 0 V to 0 V
Supply voltage AC 60 Hz (V) : 0 V to 0 V
Supply voltage DC (V) : 20.4 V to 28.8 V
Voltage type of supply voltage : DC
Number of HW-interfaces industrial Ethernet : 1
Number of interfaces PROFINET : 0
Number of HW-interfaces RS-232 : 1
Number of HW-interfaces RS-422 : 0
Number of HW-interfaces RS-485 : 1
Number of HW-interfaces serial TTY : 0
Number of HW-interfaces USB : 2
Number of HW-interfaces parallel : 0
Number of HW-interfaces Wireless : 0
Number of HW-interfaces other : 1
With SW interfaces : Yes
Supporting protocol for TCP/IP : Yes
Supporting protocol for PROFIBUS : No
Supporting protocol for CAN : Yes
Supporting protocol for INTERBUS : No
Supporting protocol for ASI : No
Supporting protocol for KNX : No
Supporting protocol for Modbus : Yes
Supporting protocol for Data-Highway : No
Supporting protocol for DeviceNet : No
Supporting protocol for SUCONET : No
Supporting protocol for LON : No
Supporting protocol for PROFINET IO : No
Supporting protocol for PROFINET CBA : No
Supporting protocol for SERCOS : No
Supporting protocol for Foundation Fieldbus : No
Supporting protocol for EtherNet/IP : Yes
Supporting protocol for AS-Interface Safety at Work : No
Supporting protocol for DeviceNet Safety : No
Supporting protocol for INTERBUS-Safety : No
Supporting protocol for PROFIsafe : No
Supporting protocol for SafetyBUS p : No
Supporting protocol for other bus systems : Yes
Radio standard Bluetooth : No
Radio standard Wi-Fi 802.11 : No
Radio standard GPRS : No
Radio standard GSM : No
Radio standard UMTS : No
IO link master : No
Type of display : TFT
With color display : Yes
Number of colors of the display : 65536
Number of grey-scales/blue-scales of display : 0
Screen diagonal (inch) : 5.7
Number of pixels, horizontal : 640
Number of pixels, vertical : 480
Useful project memory/user memory (kByte) : 64000
With numeric keyboard : Yes
With alpha numeric keyboard : Yes
Number of function buttons, programmable : 0
Number of buttons with LED : 0
Number of system buttons : 1
Touch technology : Resistive touch
With message indication : Yes
With message system (incl. buffer and confirmation) : Yes
Process value representation (output) possible : Yes
Process default value (input) possible : Yes
With recipes : Yes
Number of password levels : 200
With printer output : Yes
Number of online languages : 100
Additional software components, loadable : Yes
Degree of protection (IP), front side : IP65
Degree of protection (NEMA), front side : 4X
Operating temperature (°C) : 0 °C to 50 °C
Rail mounting possible : No
Wall mounting/direct mounting : No
Suitable for safety functions : No
Width of the front (mm) : 170
Height of the front (mm) : 130
Built-in depth (mm) : 34
