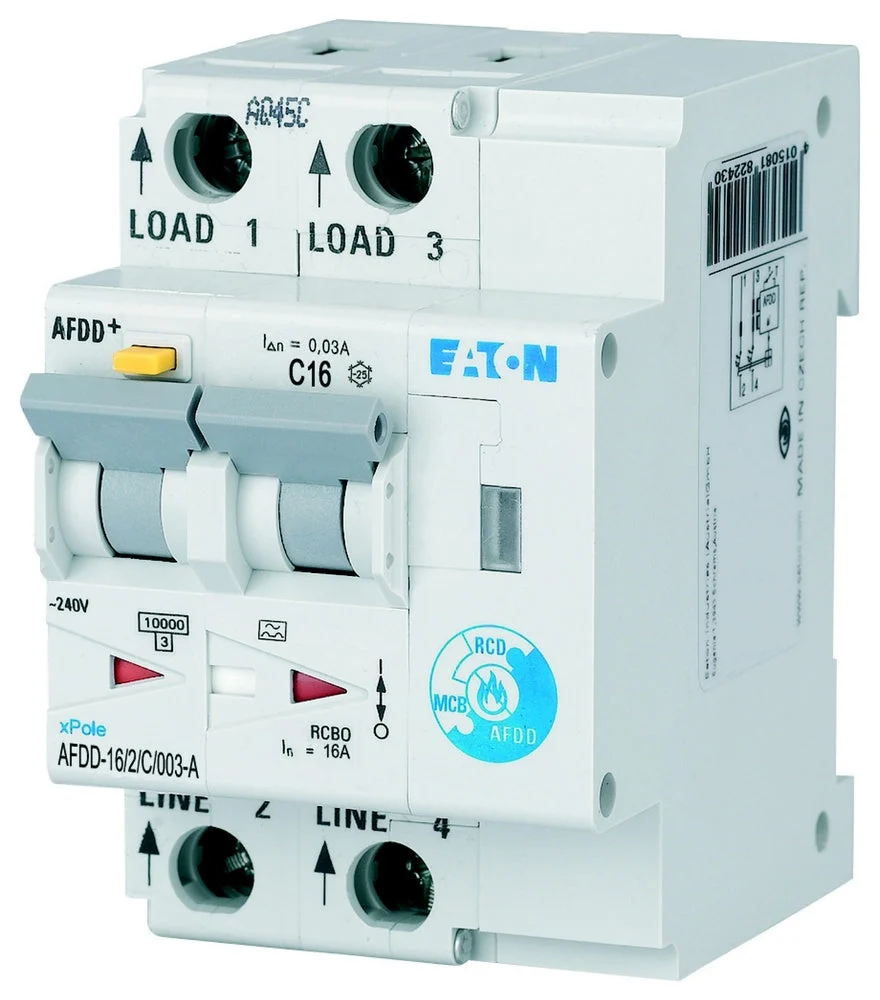

EATON INDUSTRIES Xpole ground fault Circuit Breaker With ancillary Device – 187210

Eaton Industries Xpole circuit breaker with ancillary device, 2 poles, nom. (measuring) voltage 230V, nom. (measuring) current 16A, rated fault current 30mA, leakage current type A, energy limitation class 3, rated breaking capacity according to EN 6 10kA, frequency 50Hz, tripping characteristic C, overvoltage category 3.

Specifications

Number of poles : 2
Rated voltage (V) : 230
Rated current (A) : 16
Rated fault current (A) : 0.03
Leakage current type : A
Current limiting class : 3
Rated short-circuit breaking capacity according to EN 61009 (kA) : 10
Rated short-circuit breaking capacity according to IEC 60947-2 (kA) : 0
Frequency (Hz) : 50
Release characteristic : C
Concurrently switching neutral conductor : No
Over voltage category : 3
Pollution degree : 2
Width in number of modular spacings : 3
Built-in depth (mm) : 67
Additional equipment attached at delivery : Fire protection switch
Rated switch current auxiliary device (A) : 0
Rated voltage auxiliary device (V) : 230
Control voltage type auxiliary equipment : AC
Degree of protection (IP) : IP20
