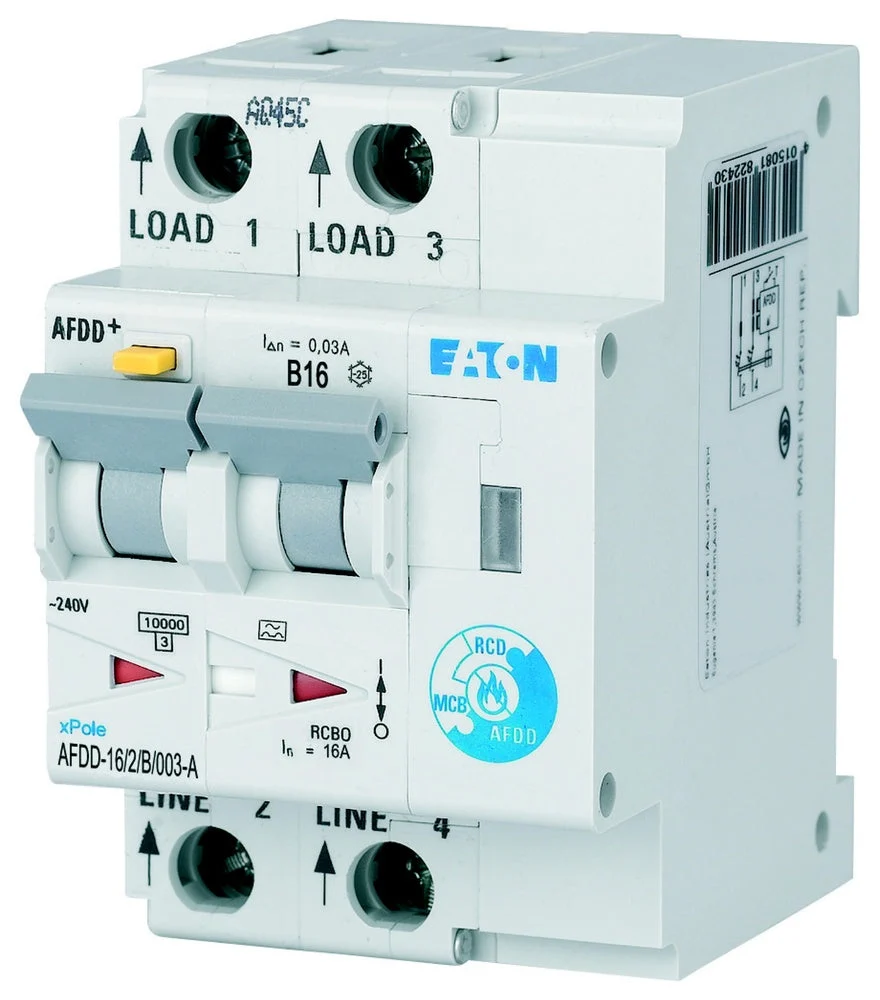

This AFDD+ series arc protection device from Eaton Moeller reduces the risk of fires in electrical installation and protects people and property. The 2-pole arc protection has 3-fold protection in one device: protection against short-circuit and overcurrent, ground fault current and electric shock. In addition, the shift indicator shows the cause of a shutdown and saves time in troubleshooting. In addition, this arc protection device is easy to install in both new construction and renovations.
Specifications
Number of poles : 2
Rated voltage (V) : 230
Rated current (A) : 16
Rated fault current (A) : 0.03
Leakage current type : A
Current limiting class : 3
Rated short-circuit breaking capacity according to EN 61009 (kA) : 10
Rated short-circuit breaking capacity according to IEC 60947-2 (kA) : 0
Frequency (Hz) : 50
Release characteristic : B
Concurrently switching neutral conductor : No
Over voltage category : 3
Pollution degree : 2
Width in number of modular spacings : 3
Built-in depth (mm) : 67
Additional equipment attached at delivery : Fire protection switch
Rated switch current auxiliary device (A) : 0
Rated voltage auxiliary device (V) : 230
Control voltage type auxiliary equipment : AC
Degree of protection (IP) : IP20
