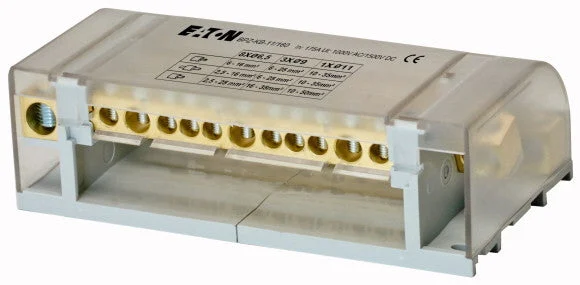

Eaton xEnergy Basic LV systems Low voltage switchgear. Terminal block, 4 poles, 160A, 1 input-, 11 output terminals, ALU.
Specifications
Height (mm) : 86
Width (mm) : 160.4
Depth (mm) : 50.2
Max. rated current (A) : 160
Number of poles : 4
Conductor cross section flexible (fine-strand) with cable end sleeve (mm²) : 2.5 mm² to 50 mm²
Conductor cross section solid (solid, stranded) (mm²) : 2.5 mm² to 50 mm²
Number of clamp positions per pole : 12
With PE-rail : No
With N-rail : No
