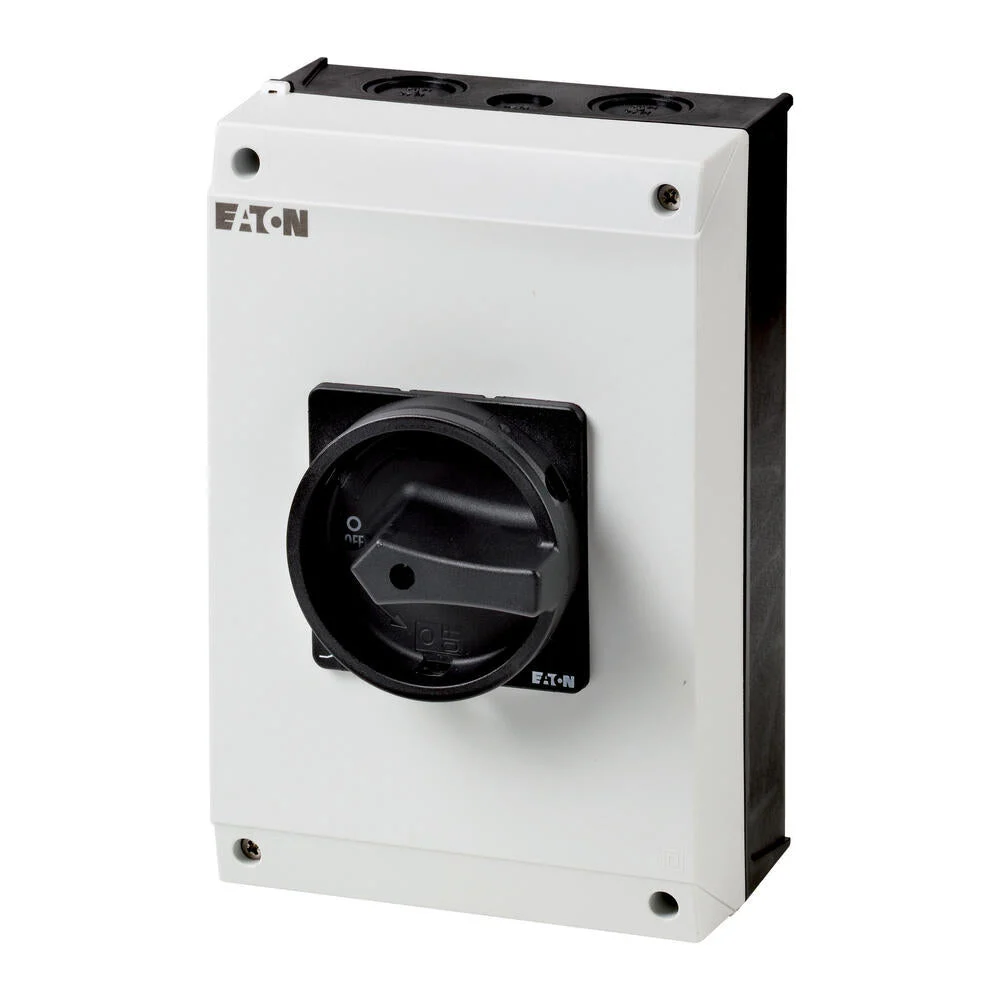

This work switch from Eaton Moeller’s T Series is a 6-pole on-off switch designed as a main switch. This work switch can be operated by a black rotary handle. Furthermore, the circuit breaker has an operating voltage of 690V and a rated continuous current of 63A. Also, this lockable work switch has an IP65 protection rating. The isolating switch is a complete device built into an enclosure (bottom mounting).
Specifications
Version as main switch : Yes
Version as maintenance-/service switch : Yes
Version as safety switch : No
Version as emergency stop installation : No
Version as reversing switch : No
Number of switches : 1
Max. rated operation voltage Ue AC (V) : 690
Rated operating voltage (V) : 690 V to 690 V
Rated permanent current Iu (A) : 63
Rated permanent current at AC-23, 400 V (A) : 63
Rated permanent current at AC-21, 400 V (A) : 63
Rated operation power at AC-3, 400 V (kW) : 22
Rated short-time withstand current lcw (kA) : 1.3
Rated operation power at AC-23, 400 V (kW) : 30
Switching power at 400 V (kW) : 30
Conditioned rated short-circuit current Iq (kA) : 2
Number of poles : 6
Number of auxiliary contacts as normally closed contact : 1
Number of auxiliary contacts as normally open contact : 1
Number of auxiliary contacts as change-over contact : 0
Motor drive optional : No
Motor drive integrated : No
Voltage release optional : No
Device construction : Complete device in housing
Suitable for floor mounting : Yes
Suitable for front mounting 4-hole : No
Suitable for front mounting center : No
Suitable for distribution board installation : No
Suitable for intermediate mounting : No
Color control element : Black
Type of control element : Door coupling rotary drive
Interlockable : Yes
Type of electrical connection of main circuit : Screw connection
Degree of protection (IP), front side : IP65
Degree of protection (NEMA) : 12
